[Eyer 2] Editing an Image

Categories
Eyer 2
Do not worry about editing the images, a new one will be created when editing, and the original will be preserved

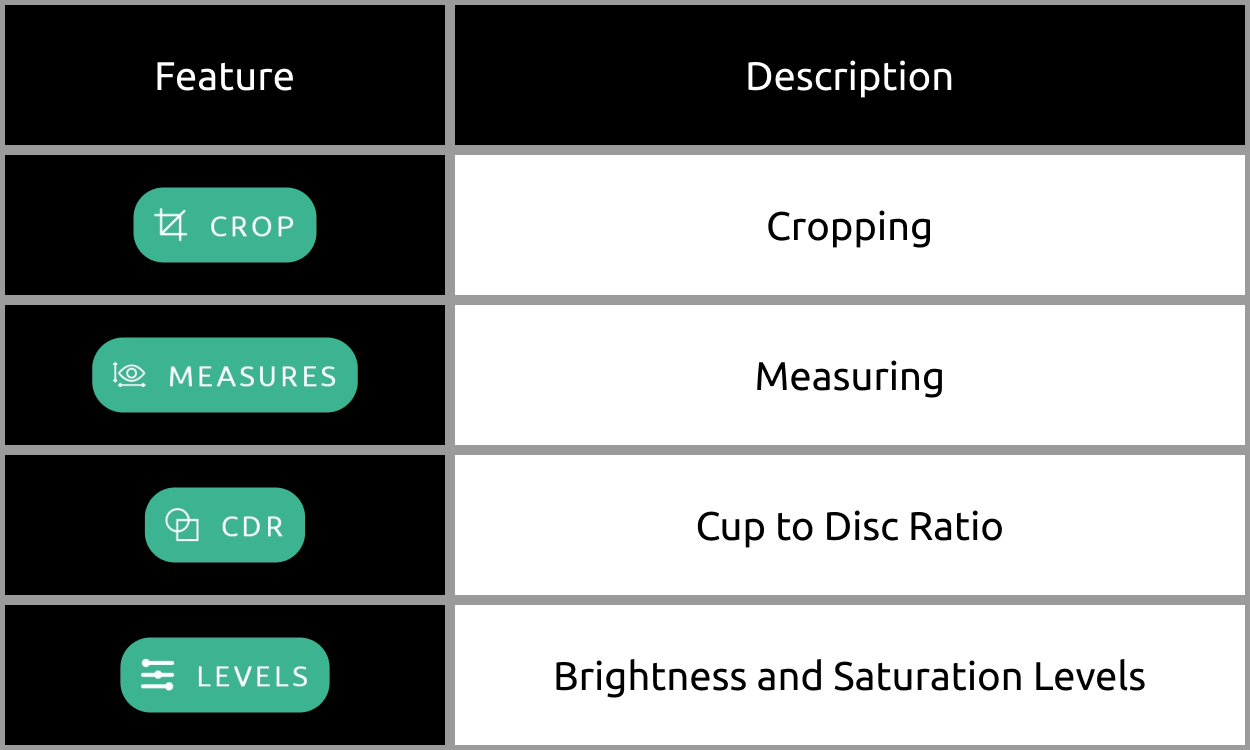

The editing options are:

Help Edit Image 01

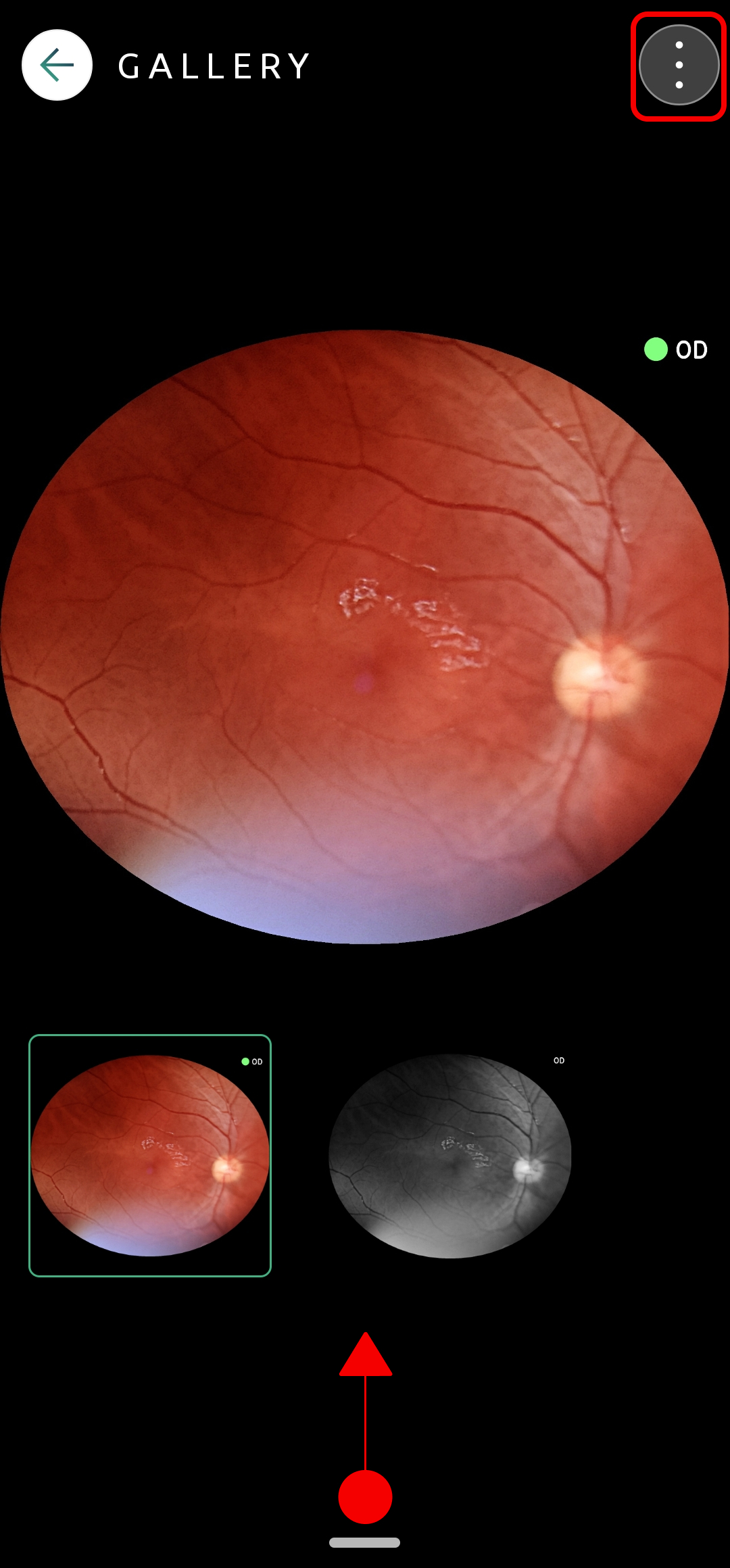

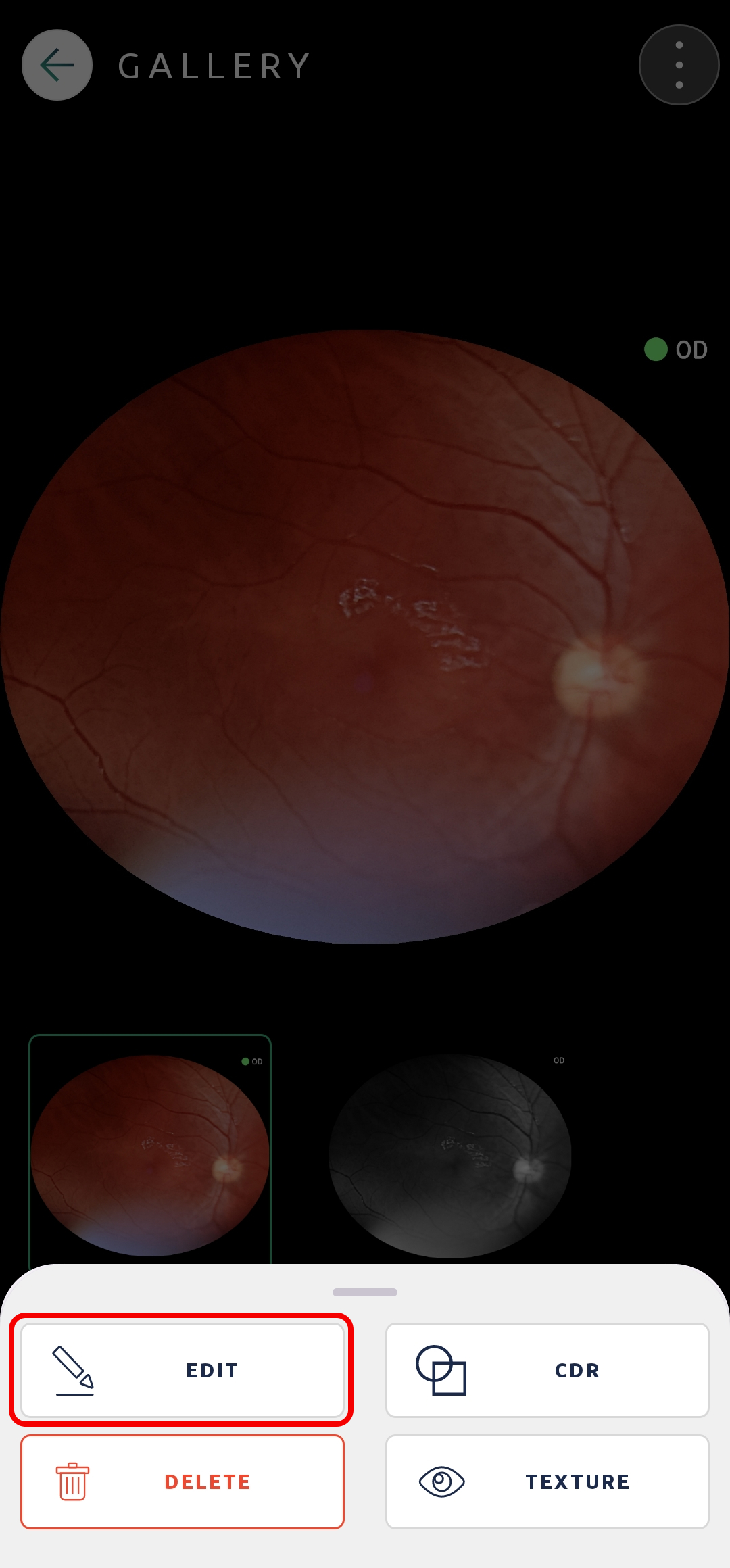

To start editing select the image you want to edit by tapping it, it will open in the gallery. Click on “Edit” to start.

Help Edit Image 02
Help Edit Image 03

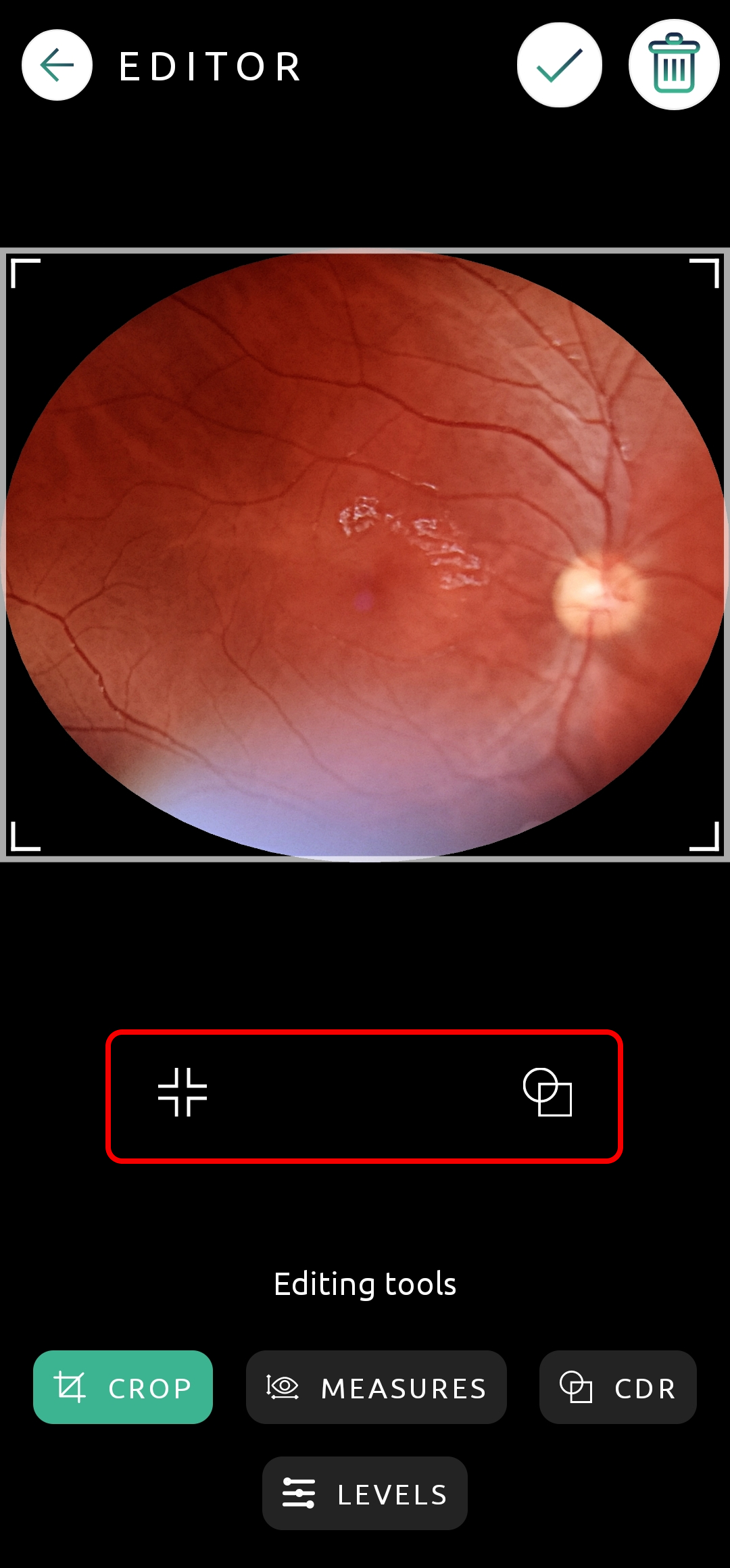

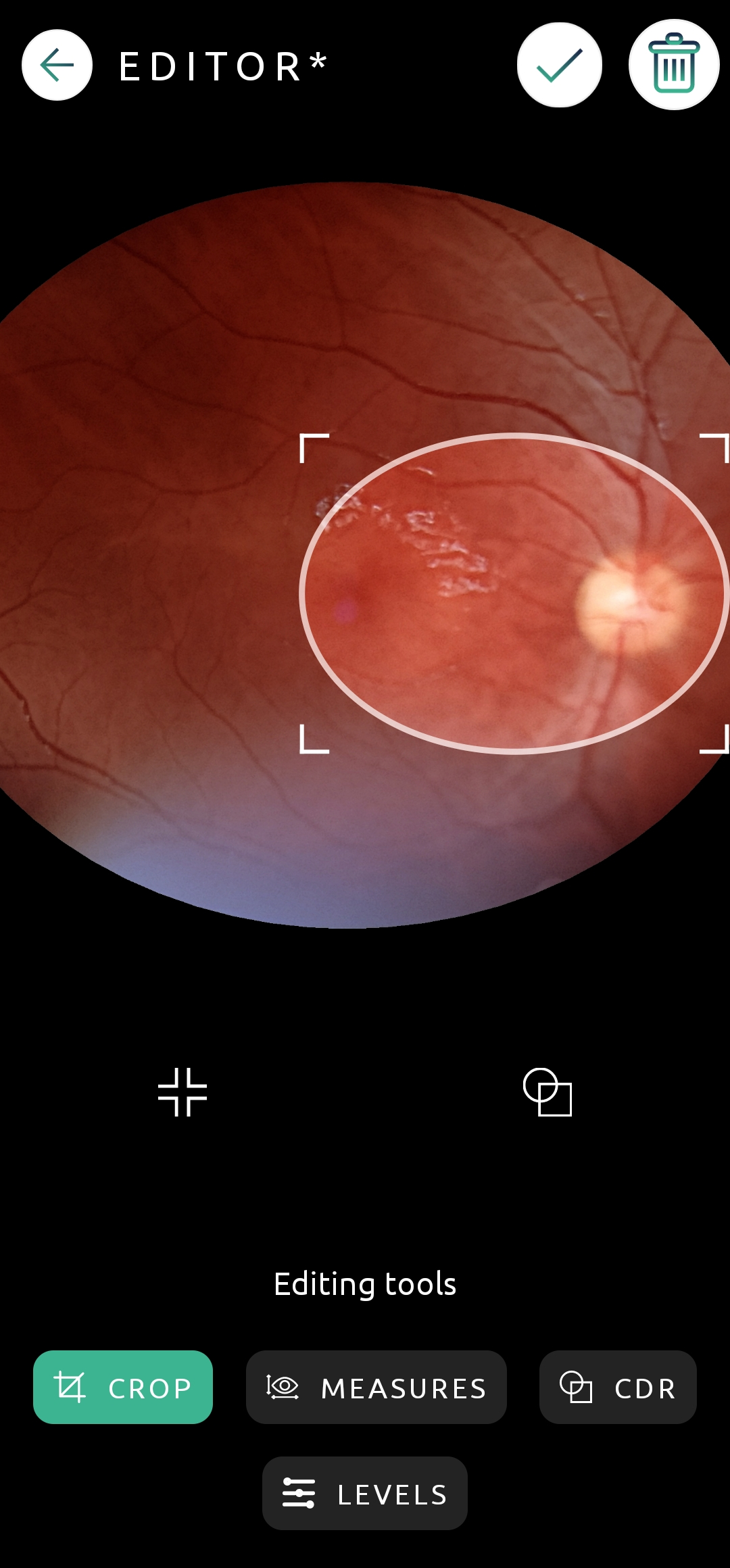

Cropping

When cropping an image, you can select the shape of the new image (either a square or an ellipse) by clicking on the icon . You can resize the shape by dragging its edges, and move it by dragging it until it encompasses the area of interest.

Tap to automatically adjust the field of vision to the standard size of 15º x 15º.

When you are done, save the modifications by clicking on the icon. To delete your changes tap  .

Help Edit Image 04
Help Edit Image 05

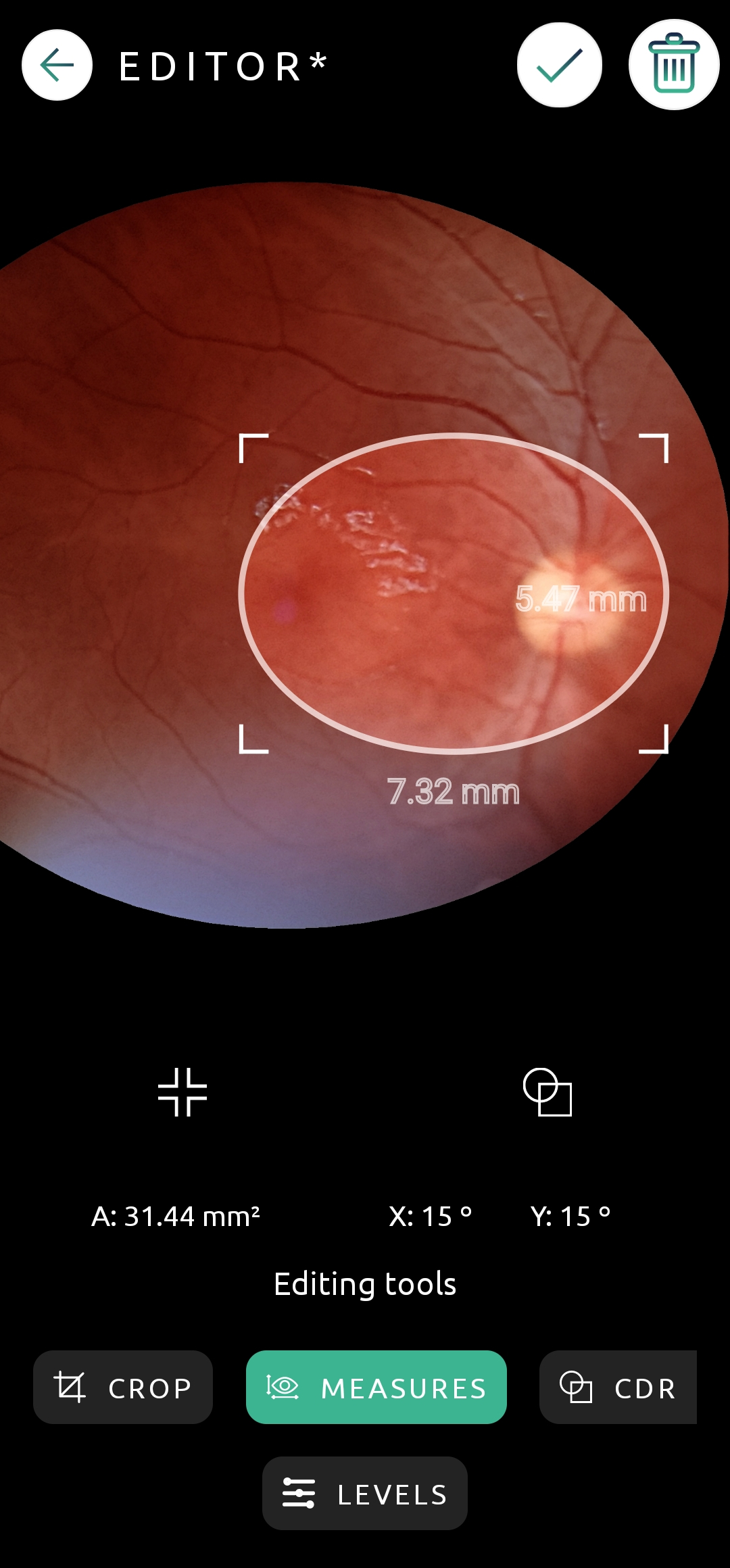

Measuring

Select the shape of the structure to be measured (square or ellipse) by tapping the   icon.

You can resize the shape by dragging its edges, and move it by dragging it until it encompasses the area of interest.

Tap to automatically adjust the field of vision to the standard size of 15º x 15º.

When you are done, save the modifications by clicking on the icon. To delete your changes tap  .

You can only apply one measurement per image. To measure again repeat the process.

Help Edit Image 06

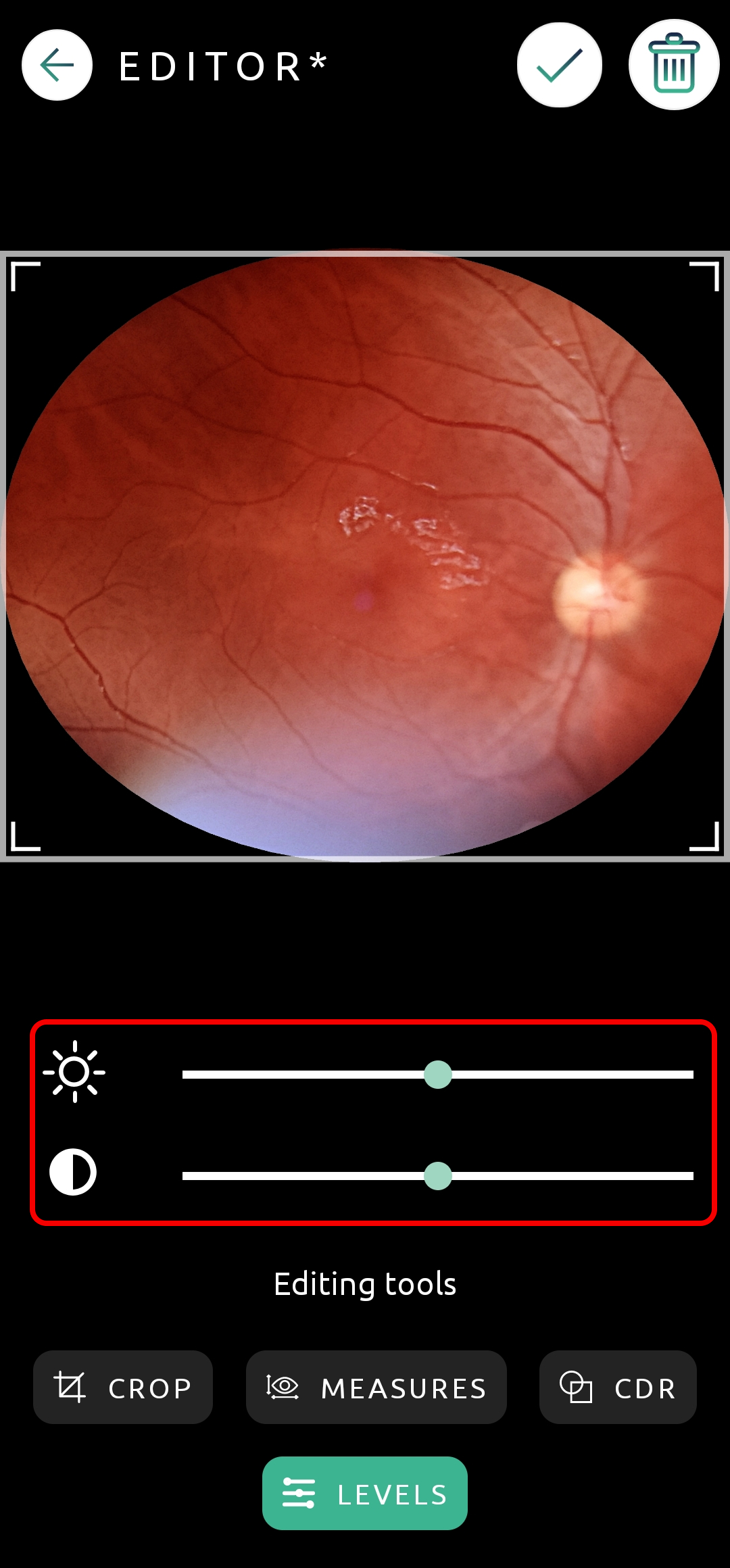

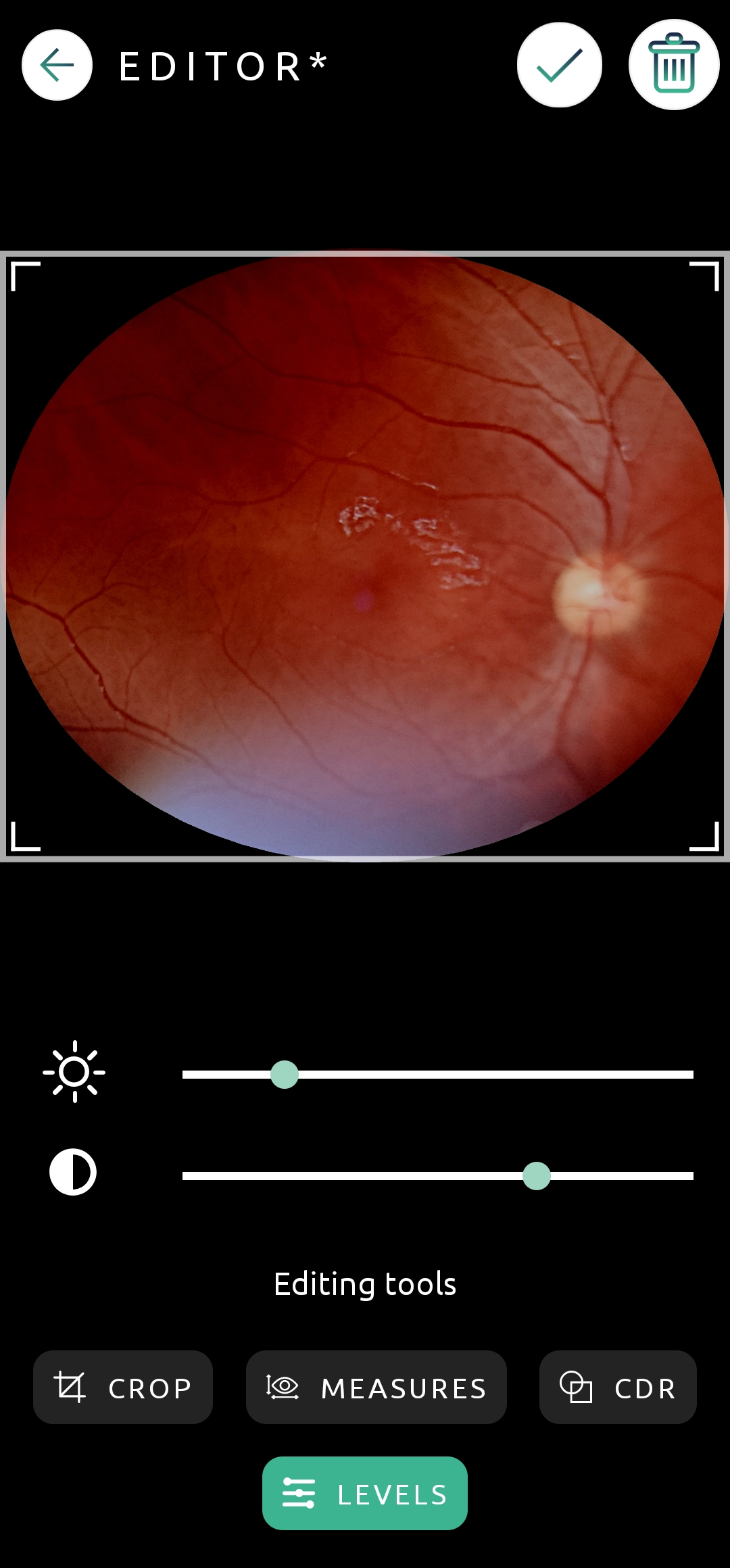

Levels

On the “Levels” tab you can change the lighting and saturation levels of the image by moving the slider bars left and right. After confirming it is possible to crop, measure, or rotate the image.

Help Edit Image 08
Help Edit Image 09

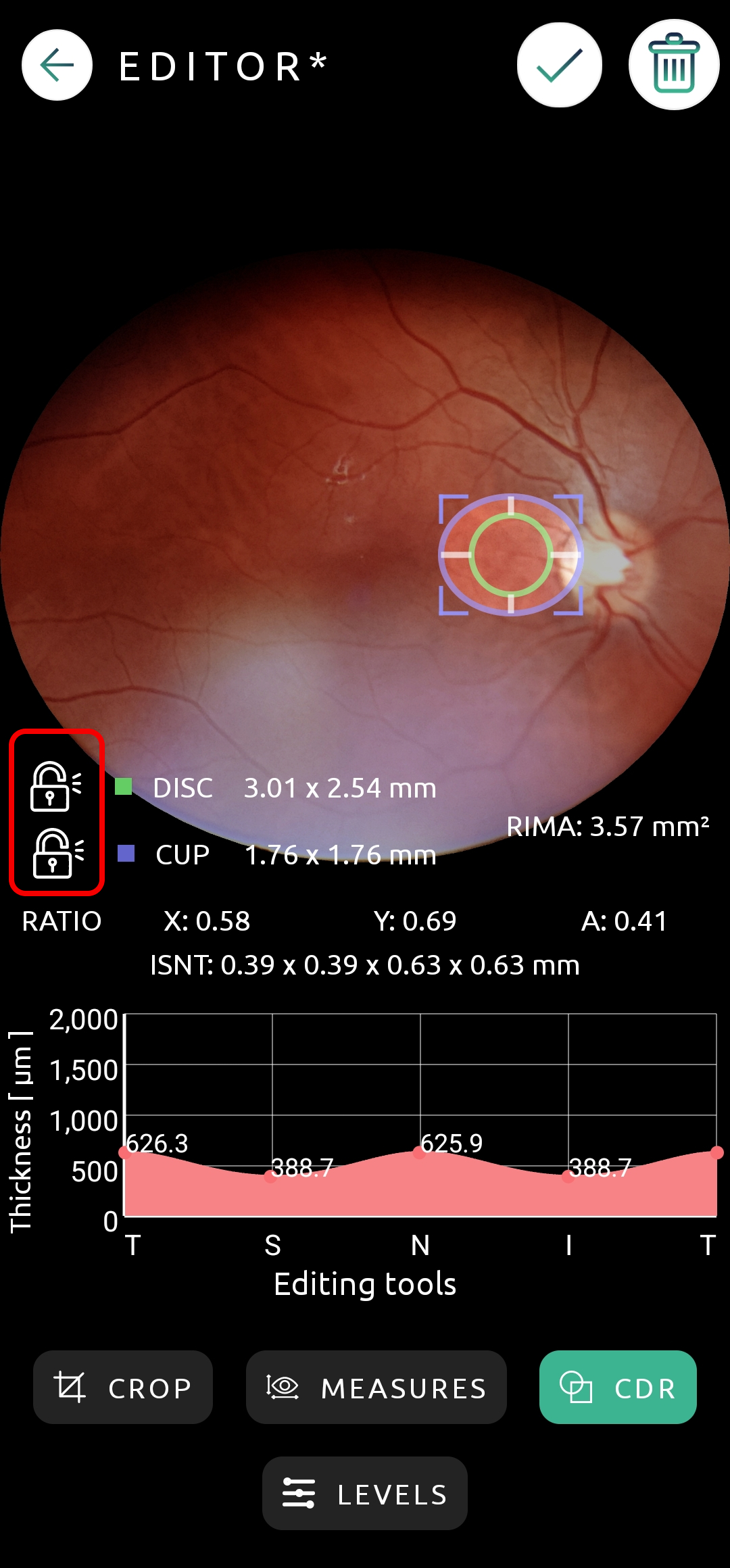

CDR

Feature to measure the Cup-to-Disc Ratio (CDR). Measures the ratio between the areas of the optic nerve and the excavation. Helps to detect glaucoma induced alterations. Move the circles to encompass the areas of interest and use the locks to keep their position while the other is altered.

Help Edit Image 07
For further assistance, please don't hesitate to reach out to us at support@phelcom.com. Our dedicated team is here to help resolve any technical queries you may have.
