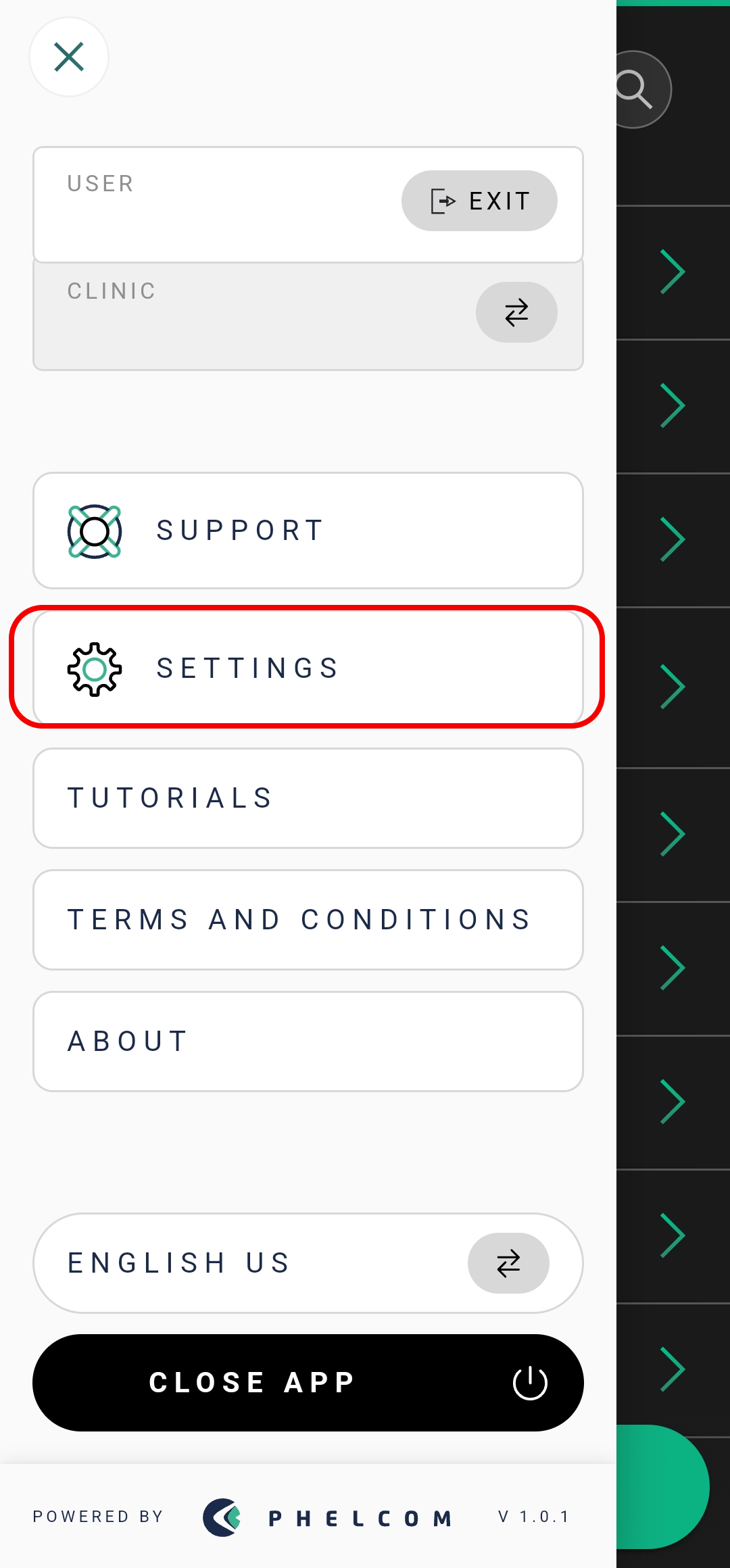

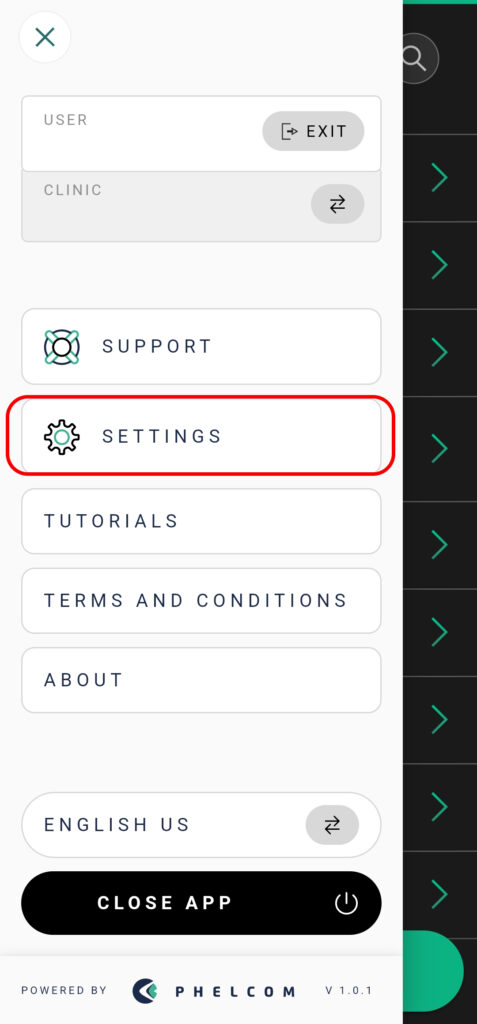

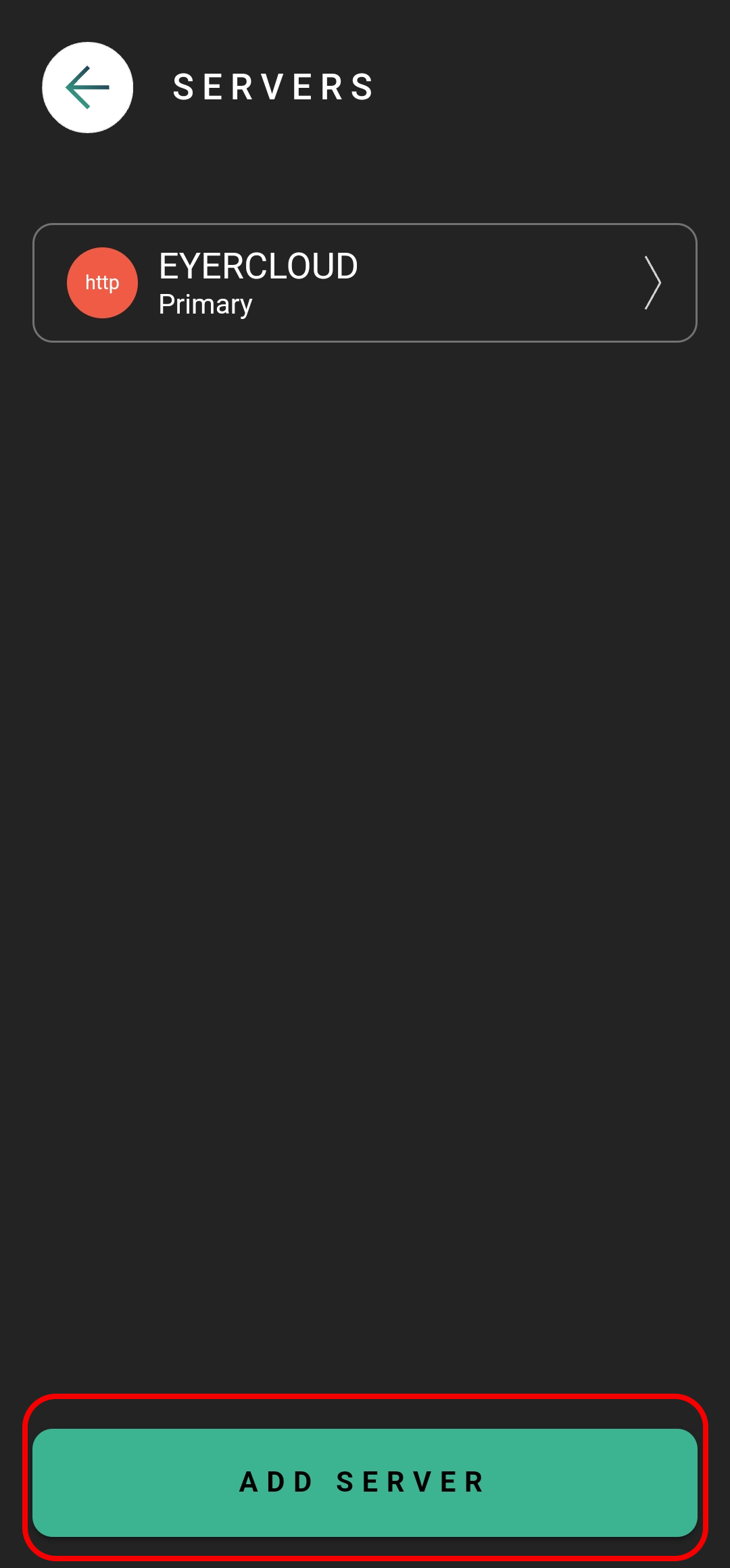

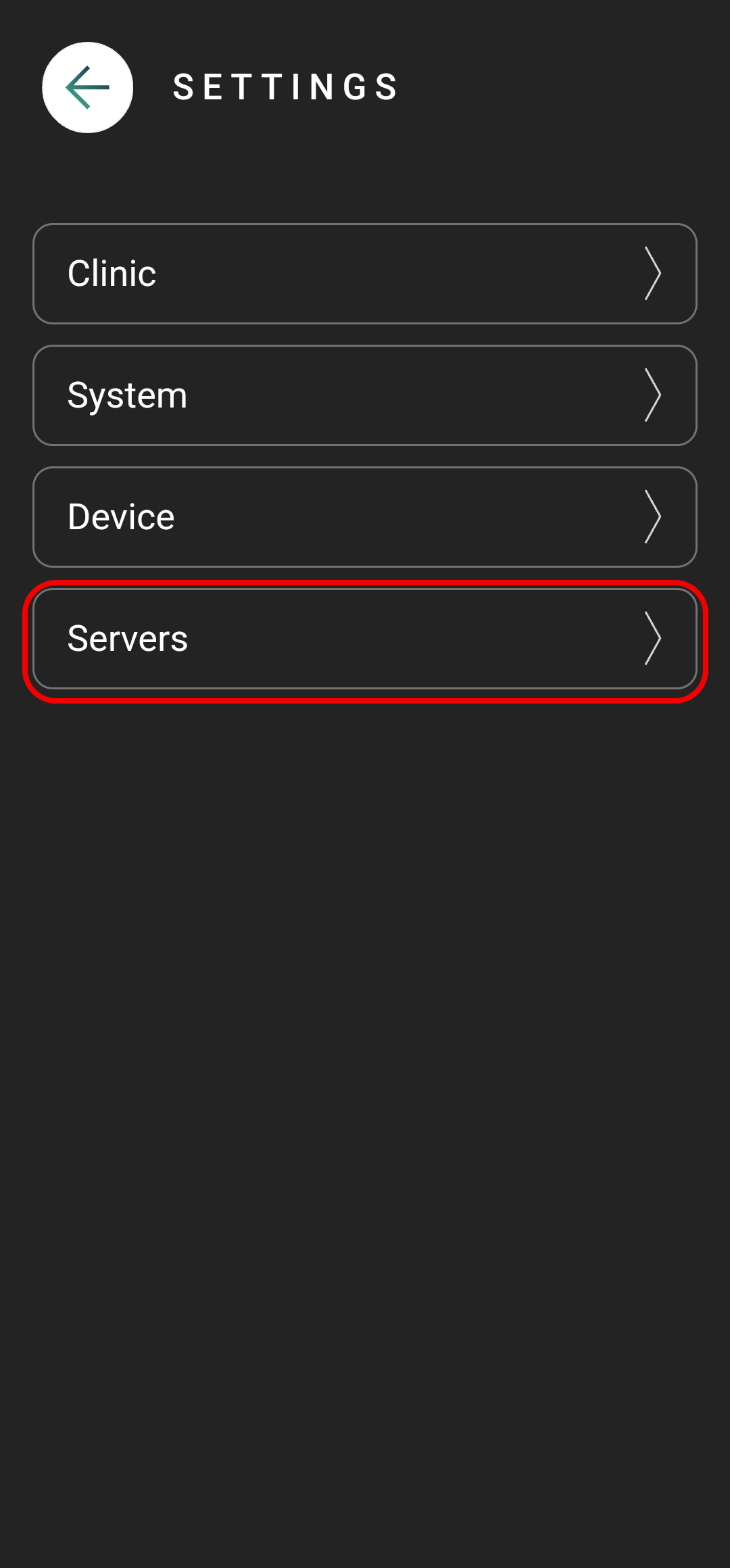

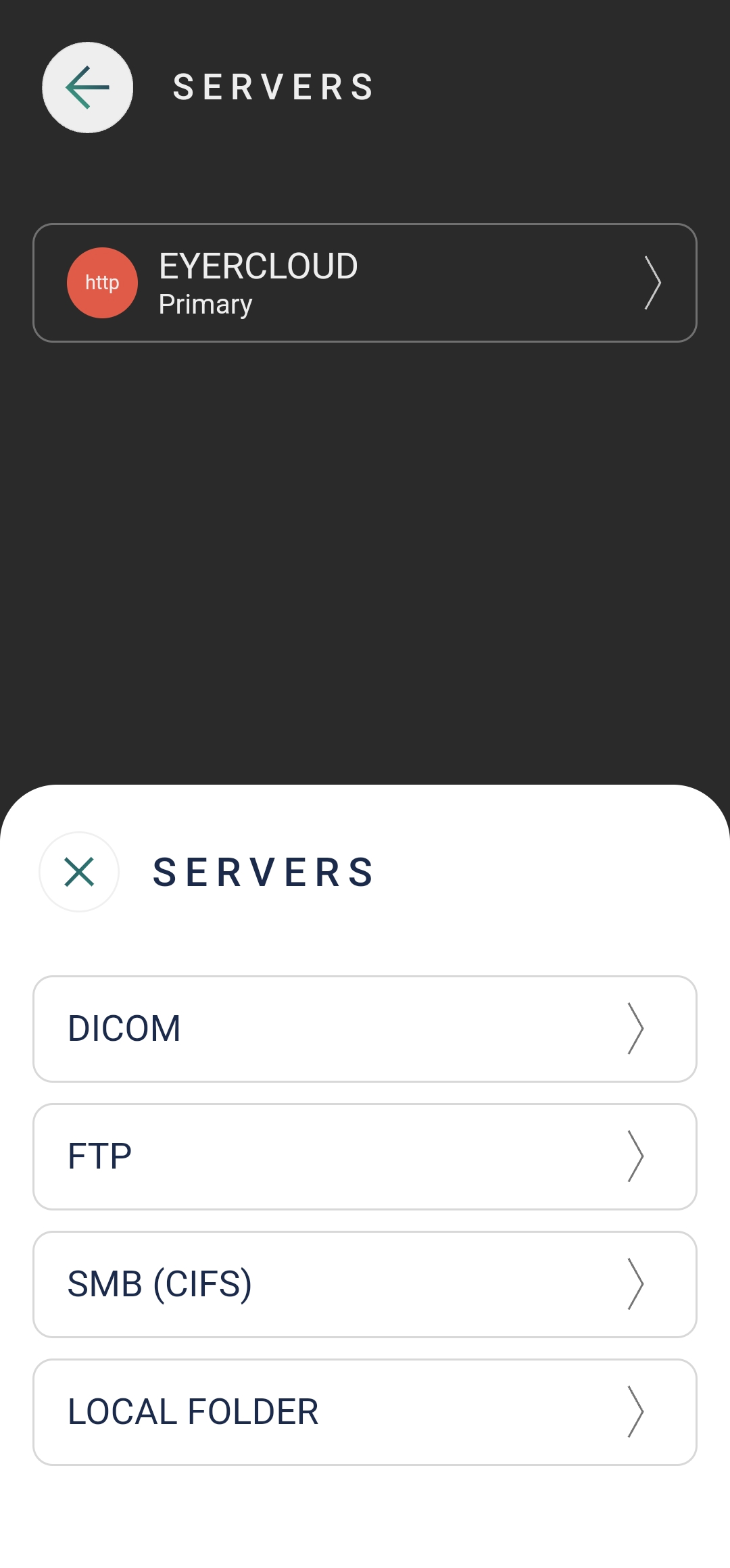

All images are sent to either the Eyercloud system or a user configured server. To establish a connection to a server, click on “Settings”, then “Servers”, followed by pressing the “Add Server” button and choosing the appropriate server type.
If there are any issues when creating the connection check our troubleshoot post.
General Server Settings
These settings are required regardless of the type of server being configured:

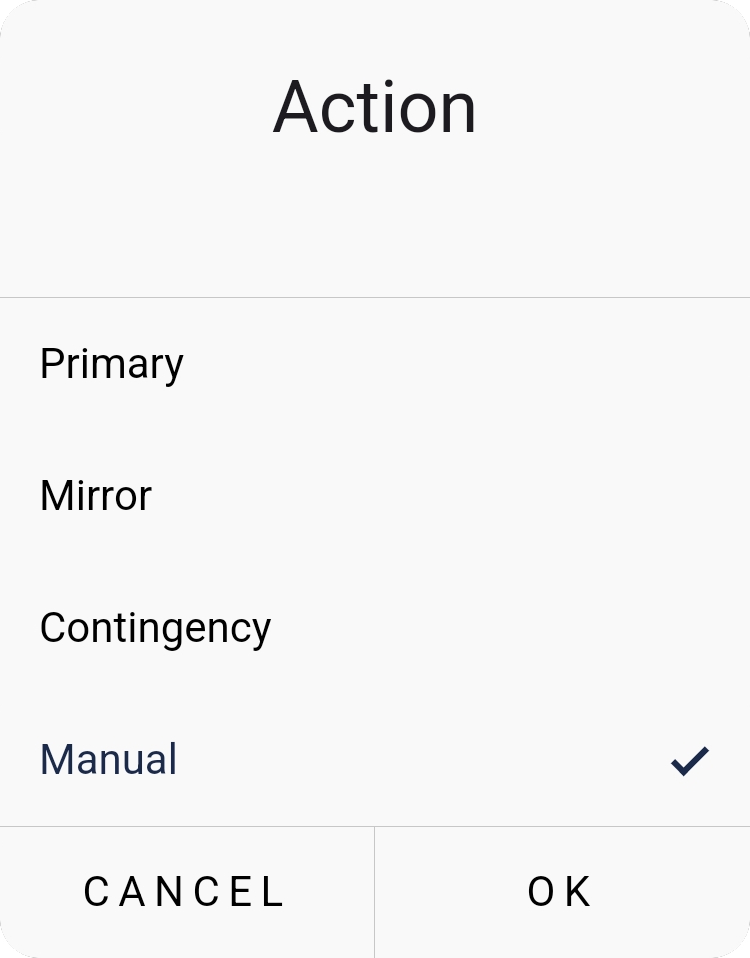

Primary: Default server used by Eyercloud. Cannot be removed, only disabled.
Mirror: All the data generated by the device will be sent to the primary server and any mirror(s) configured.
Contingency: Used only in case of Primary server failure.
Manual: not used automatically, but is available for manual transfer.
2. Name: server identifier, is NOT unique.
3. Key: Generated automatically based o nthe server name. Unique and follow the format of three upper case letters (A to Z), followed by a dash (-), followed by three numbers (0 to 9)..
FTP Settings

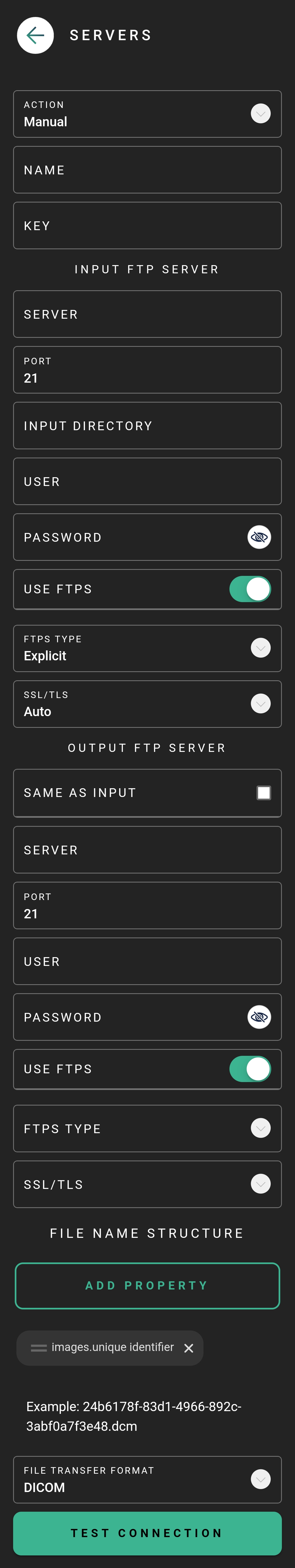

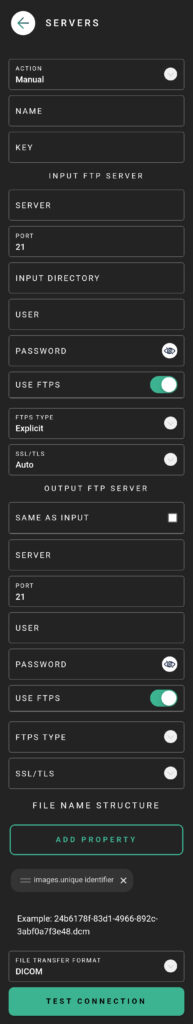

FTP server configuration:
Input FTP server:
1. Server IP address.
2. Server port.
3. FTP directory.
4. User and password.
5. FTPS cryptography.
6. SSL / TLS.
Output FTP server:
1. Server IP address.
2. Server port.
3. User and password.
4. FTPS cryptography.
5. SSL / TLS.
6. Filename Structure.
7. File transfer format.
To edit the naming structure of the images generated by the device follow these steps.
