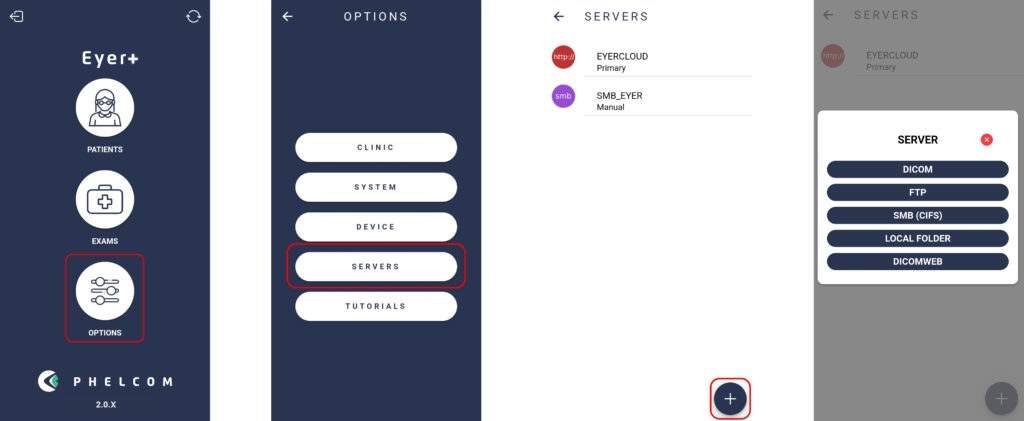

All images are sent to either the Eyercloud system or a user configured server. To establish a connection to a server, click on “Settings”, then “Servers”, followed by pressing the “Add Server” button and choosing the appropriate server type.

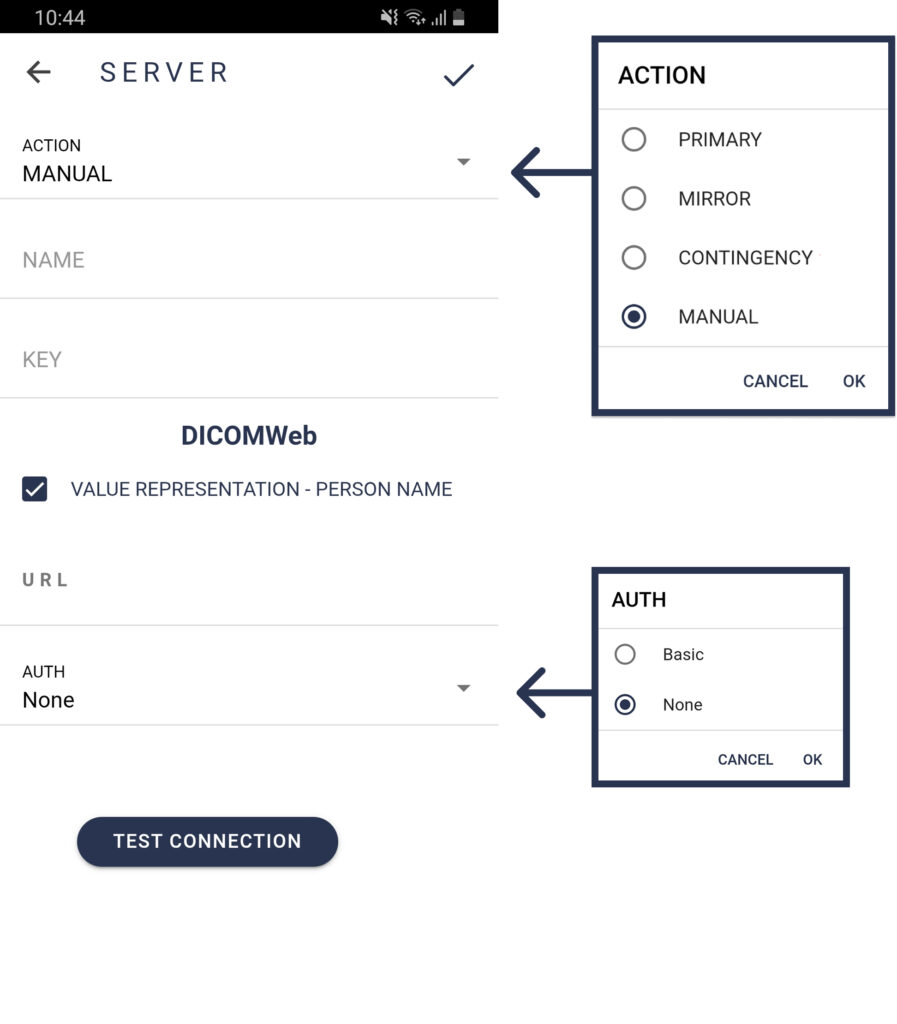

Input Server information

ACTION: How the Eyer transfers images and choose the best option for you:
* Primary: Main server for your Eyer. EyerCloud is highly recommended.
* Mirror: Automatically sends all data to a second server in addition to the primary one, ensuring redundancy.
* Contingency: Backup server. Images are sent here if the primary server fails, preventing data loss.
* Manual: You must manually choose to send images to server.
* Disabled: The server is not active and won’t be used for any data transfers.

NAME: Insert a name for the server for your internal reference and control.

KEY: This is automatically generated based on the server name. It must be unique and in the format of three uppercase characters (A-Z) and three numbers (0-9).

VALUE REPRESENTATION – PERSON NAME: If you mark “Yes,” you will see the patient name as Last_name^First_name. If you don’t, you will see it as First_name^Last_name.

URL: Put the website URL.

AUTH: Choose the authentication type. If you select “Basic,” you’ll need to enter the server’s username and password to Eyer upload images.
