FAST, SMART AND CONNECTED

World’s first high-quality portable fundus camera

Examine, display, and share images in real time.
10 million retina images captured with the Eyer worldwide

request a quote

Or contact an Agent

Retinal Examinations

The prevention of irreversible blindness begins with high quality retinal examinations performed anywhere.

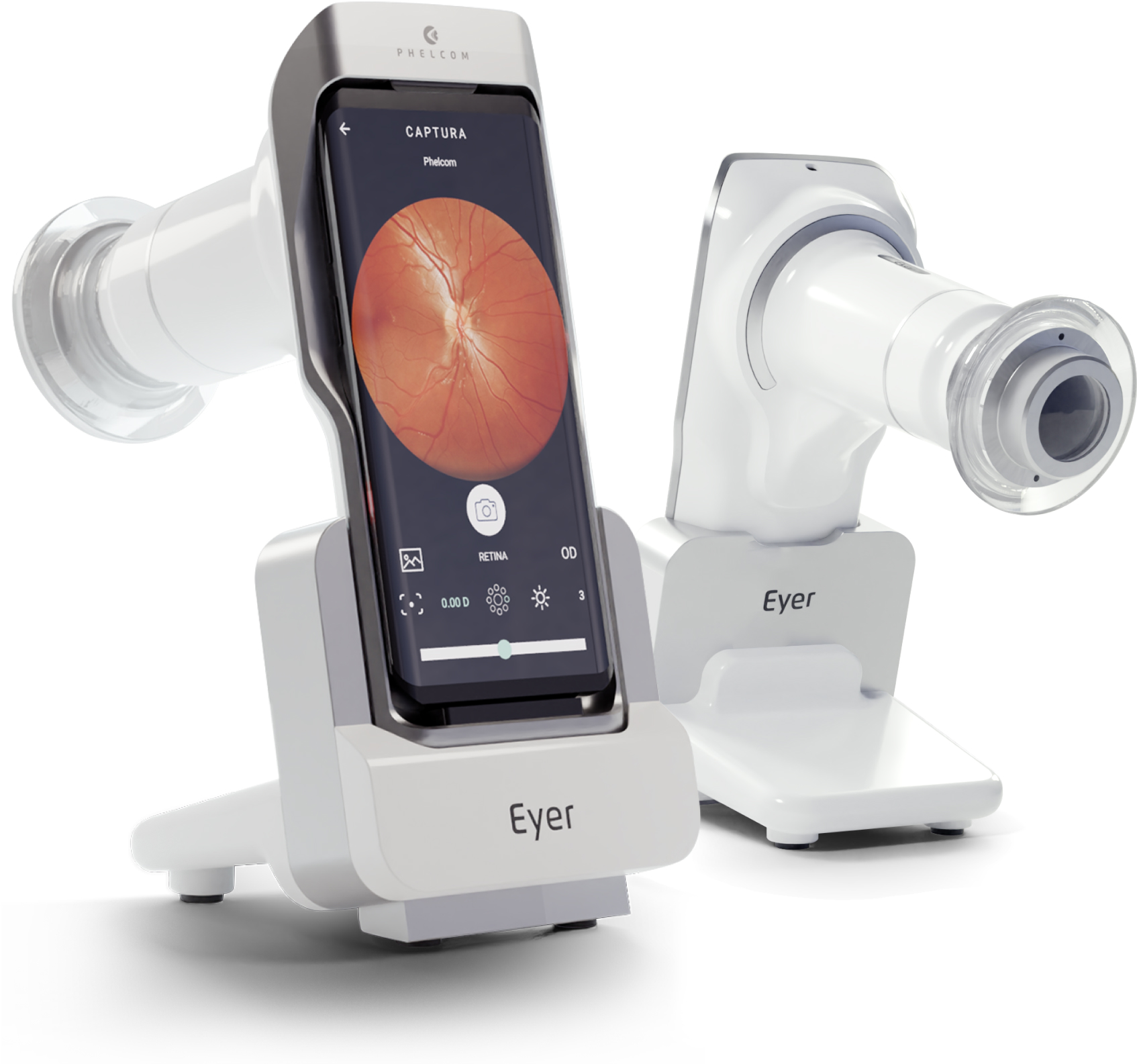

Eyer Fundus Camera

Topcon Triton (Tabletop)

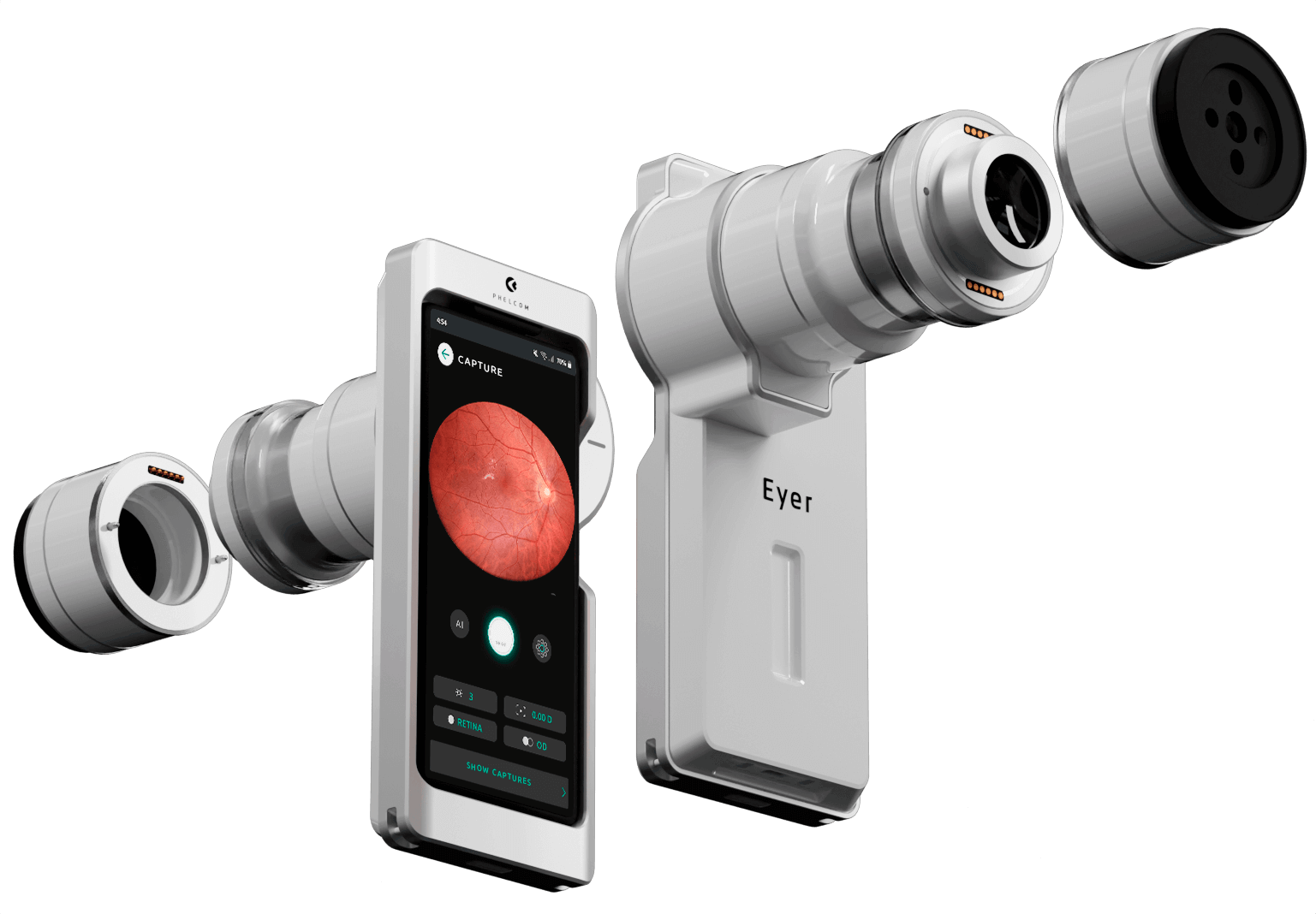

Meet Eyer

high-quality portable fundus camera

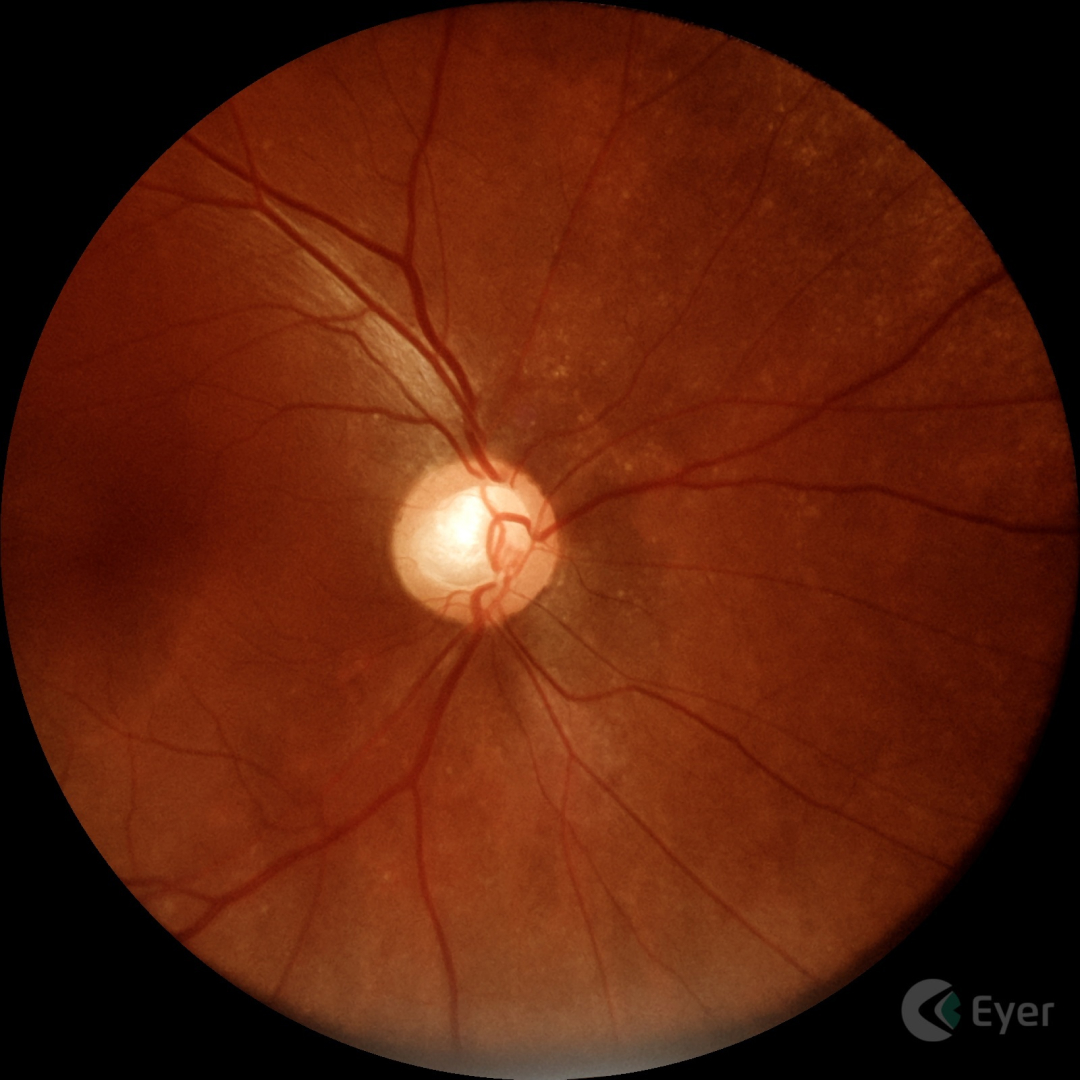

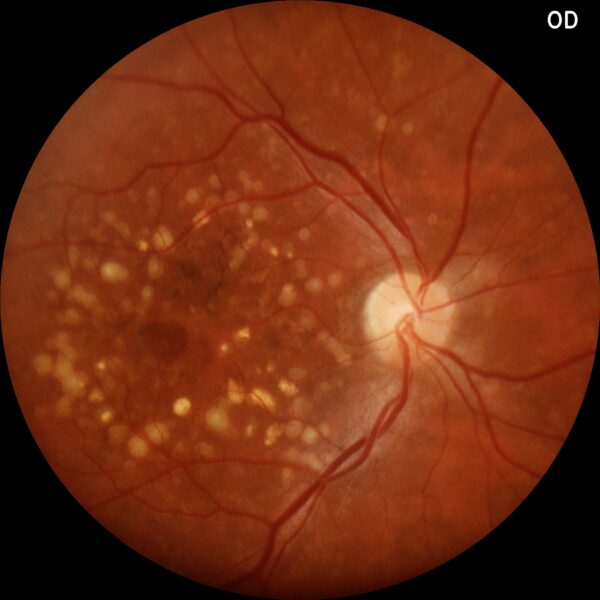

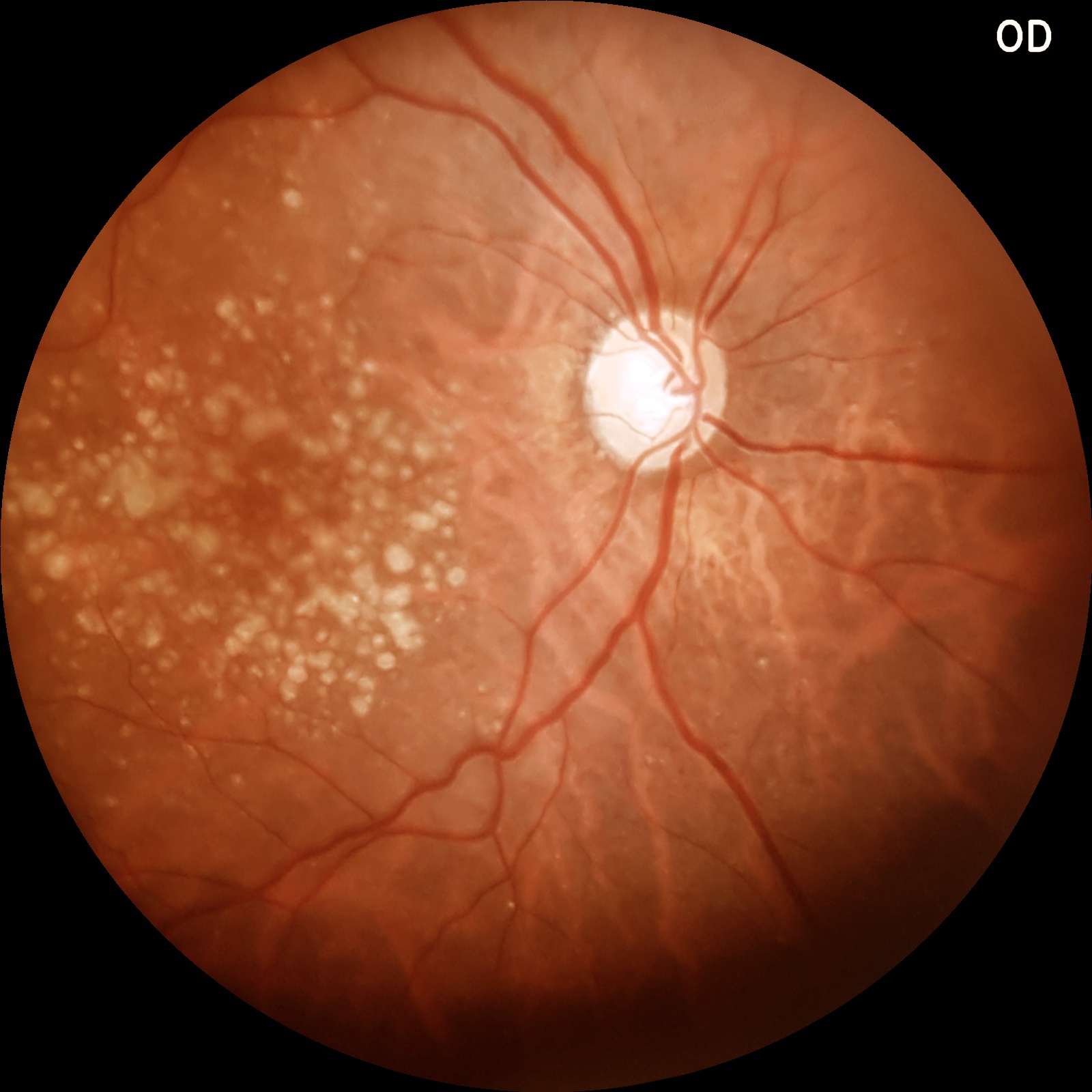

Eyer Retina Images

retina colorretina color com o retinógrafo Eyer

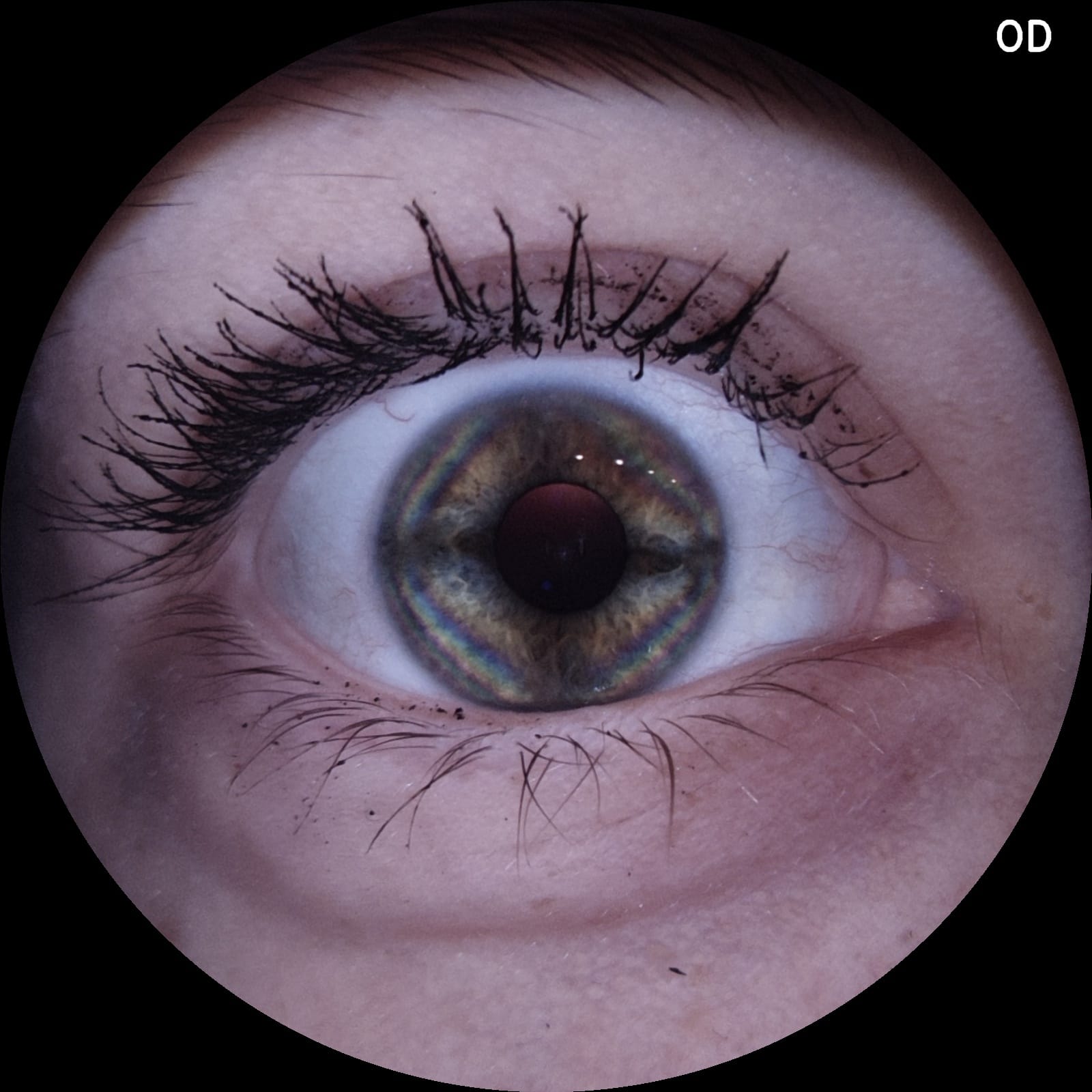

Anterior Segment

Anterior photo with internal illumination

Anterior photo with external illumination

Panoramic

Optic Nerve Stereophoto

Advantages

The latest in portable retinography for prevention

High quality

Phelcom’s patented high-tech technology allows high quality exams to be performed on a portable device integrated into the smartphone.

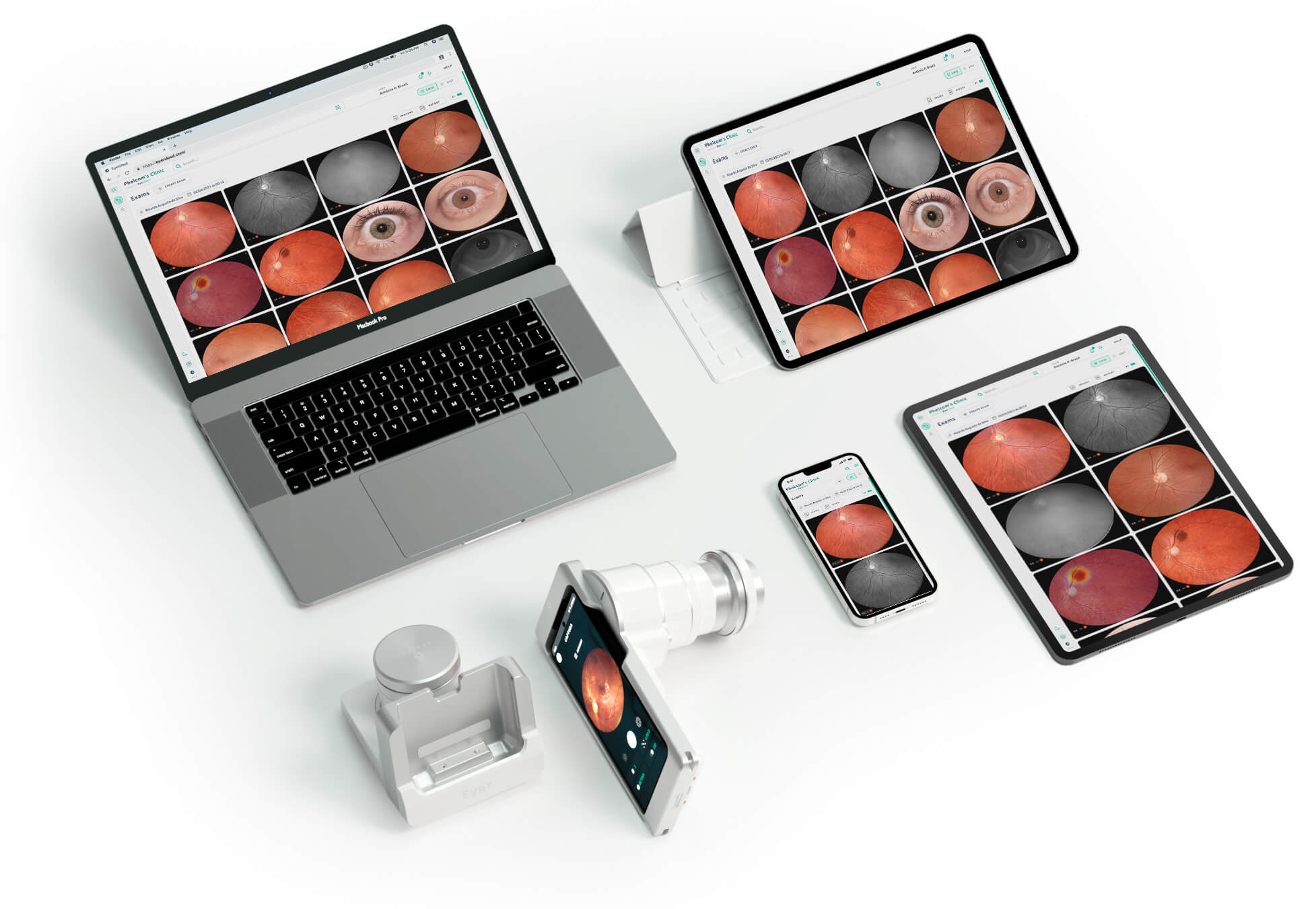

Connectivity

Eyer is automatically connected since it is integrated into the smartphone, making it easy to share and access examinations data in the cloud.

Non-mydriatic

With Eyer it is possible to perform retinal examinations at any location without the need to use eye drops for pupil dilation, increasing patient comfort and decreasing exam time.

Easy operation

With minimal training, any healthcare professional can use Eyer to perform high-quality retinal examinations in less than 1 minute.

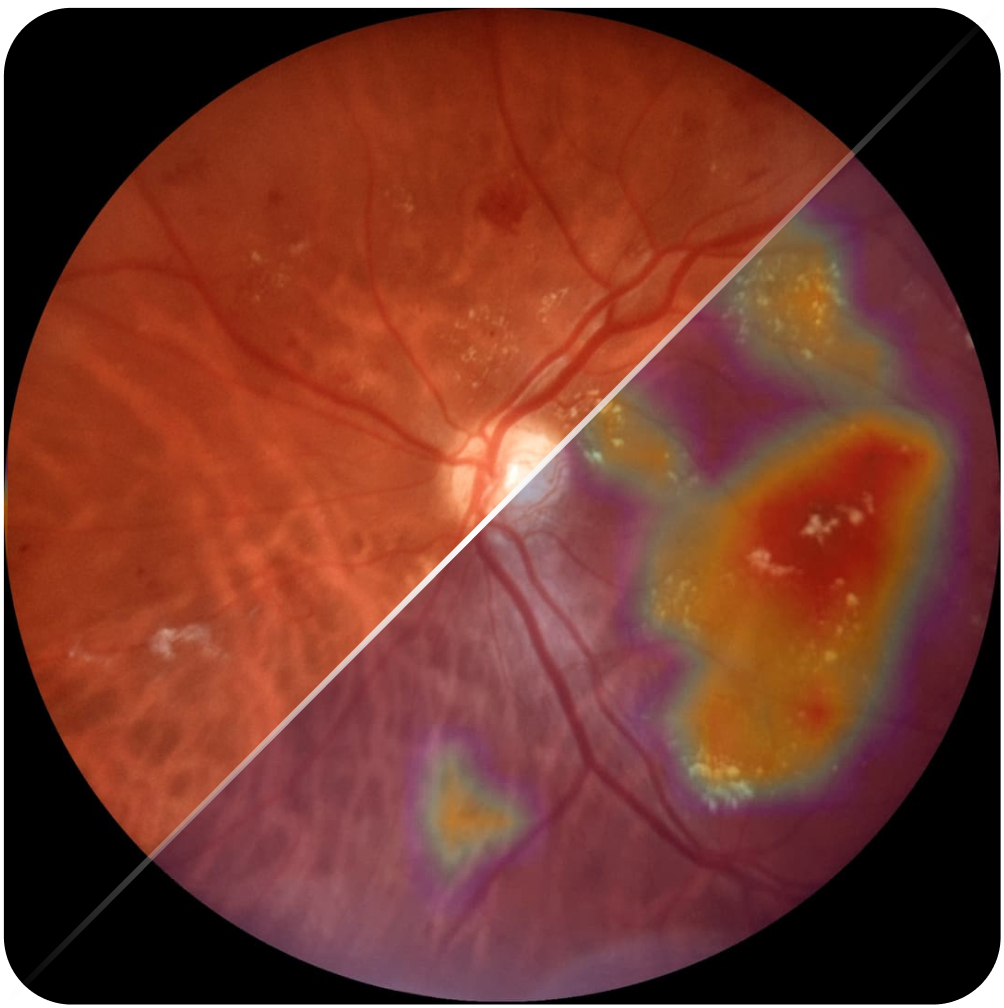

Attention Maps

Eyer has intelligent functions to help in the patient screening and referral.

Panoramic

Eyer’s internal focal points allow for panoramic images capturing a field of view of greater than 100 degrees.

tele-ophthalmology

Eyer’s portability and connectivity allow examinations to be performed anywhere, reducing time, costs and distance.

Eyer Specifications

	Portable non-mydriatic retinograph
Field	45°
Resolution	Sensor of 12 MP (Image resolution: 1600×1600 pixels)
Exams	Color, red free and anterior segment
Internal Fixation	11 targets for peripheral imaging
Focus	-20D a +20D, autofocus
Pupil size	3 mm of minimum size
Format	JPEG, PDF and DICOM
Smartphone	Samsung Galaxy S10 included
System	Android 11
Screen	6.1 inch AMOLED 3040 x 1440 (Quad HD+)
Processor	8 cores (2.7 GHz, 2.3 GHz, 1.9 GHz)
Memory	128 GB (ROM) and 8 GB (RAM)
Connectivity	WI-FI or 4G
Battery	3400 mAh – Approximately 60 exams
Weight	690 g
Telemedicine	Automatic integration with EyerCloud

Eyer: Nº 81663569001
Eyer Cloud: Nº 81663560001

CLEARED
510(k): K221329

13485

2022DM-0025758

304AIBZI00005000
