When capturing images it is important to follow our recommendations to ensure that you take highest quality pictures possible, and to avoid some common problems.

Faq How To Avoid The Most Common Capture Mistakes 01 1

Faq How To Avoid The Most Common Capture Mistakes 02 1

Faq How To Avoid The Most Common Capture Mistakes 03

Faq How To Avoid The Most Common Capture Mistakes 08

Faq How To Avoid The Most Common Capture Mistakes 12

Positioning

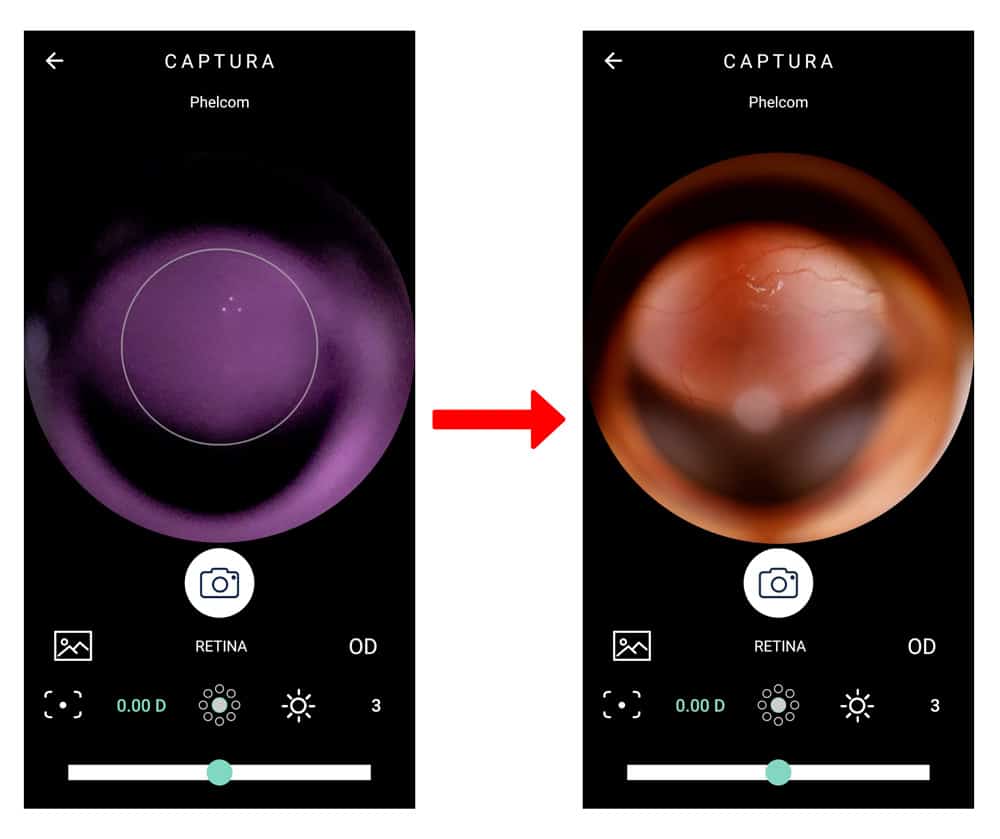

When capturing an image if the camera is not held perpendicular to the patient’s face, even if the image on the screen shows the retina properly focused, the capture will contain a glare where external light has entered the camera during capture.

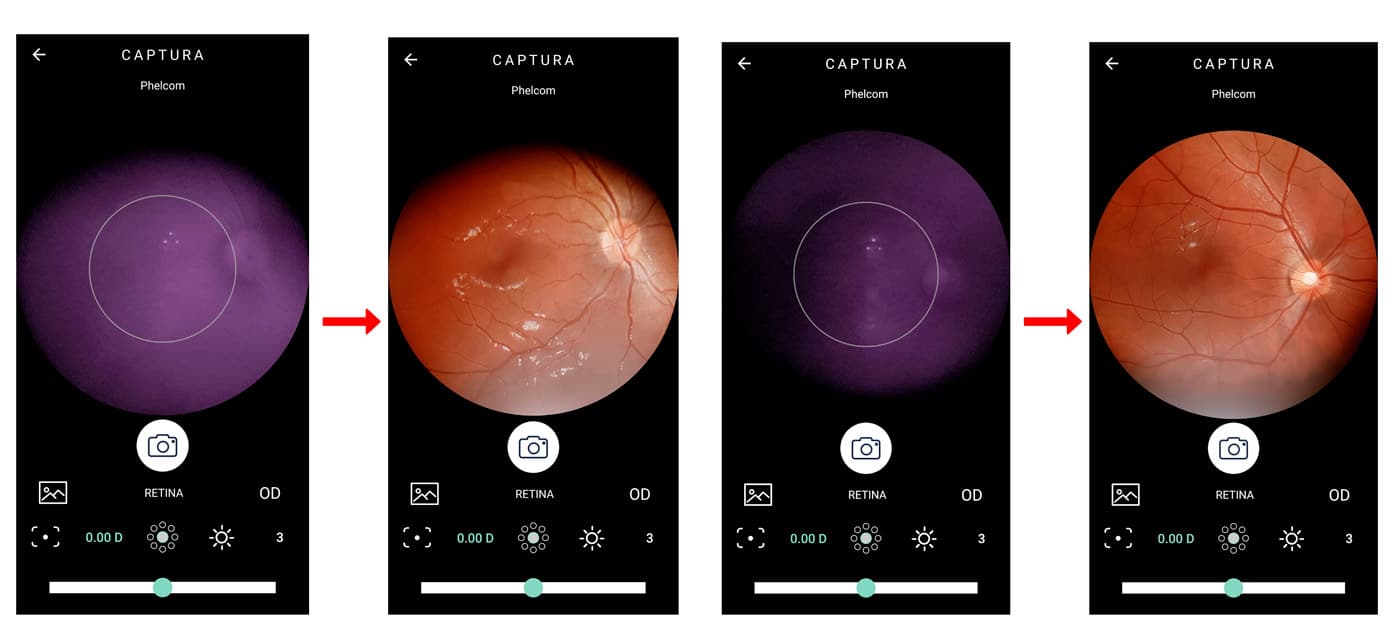

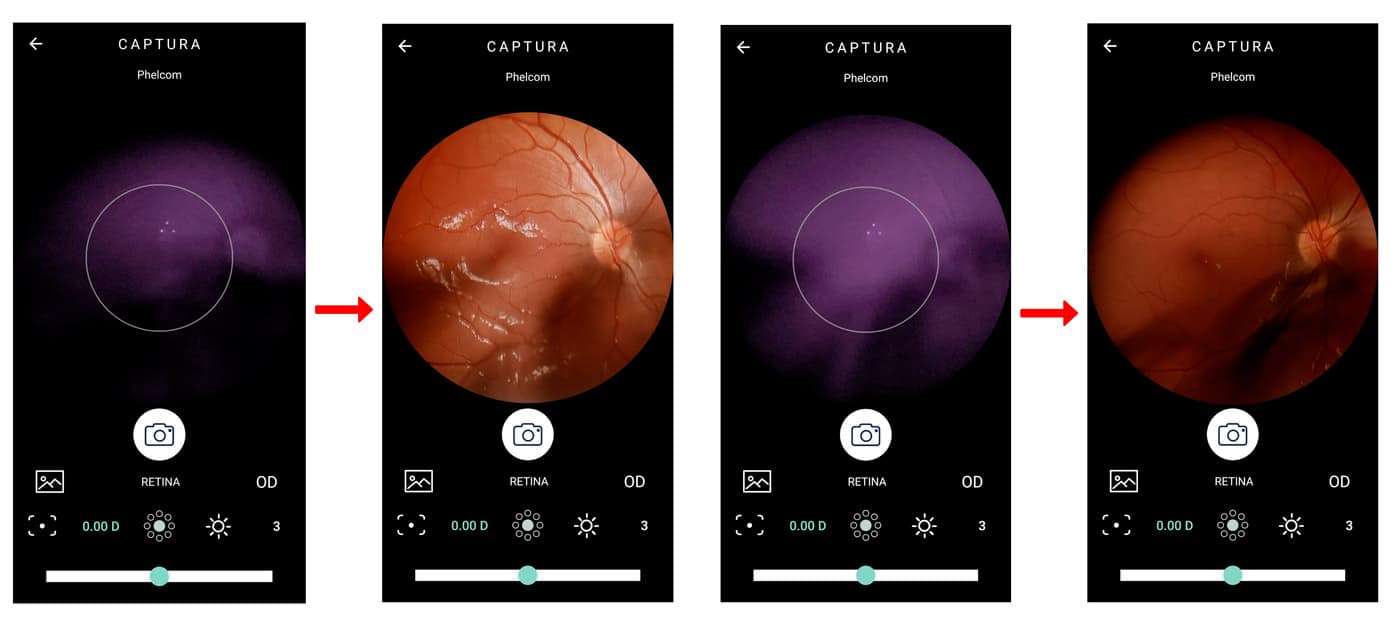

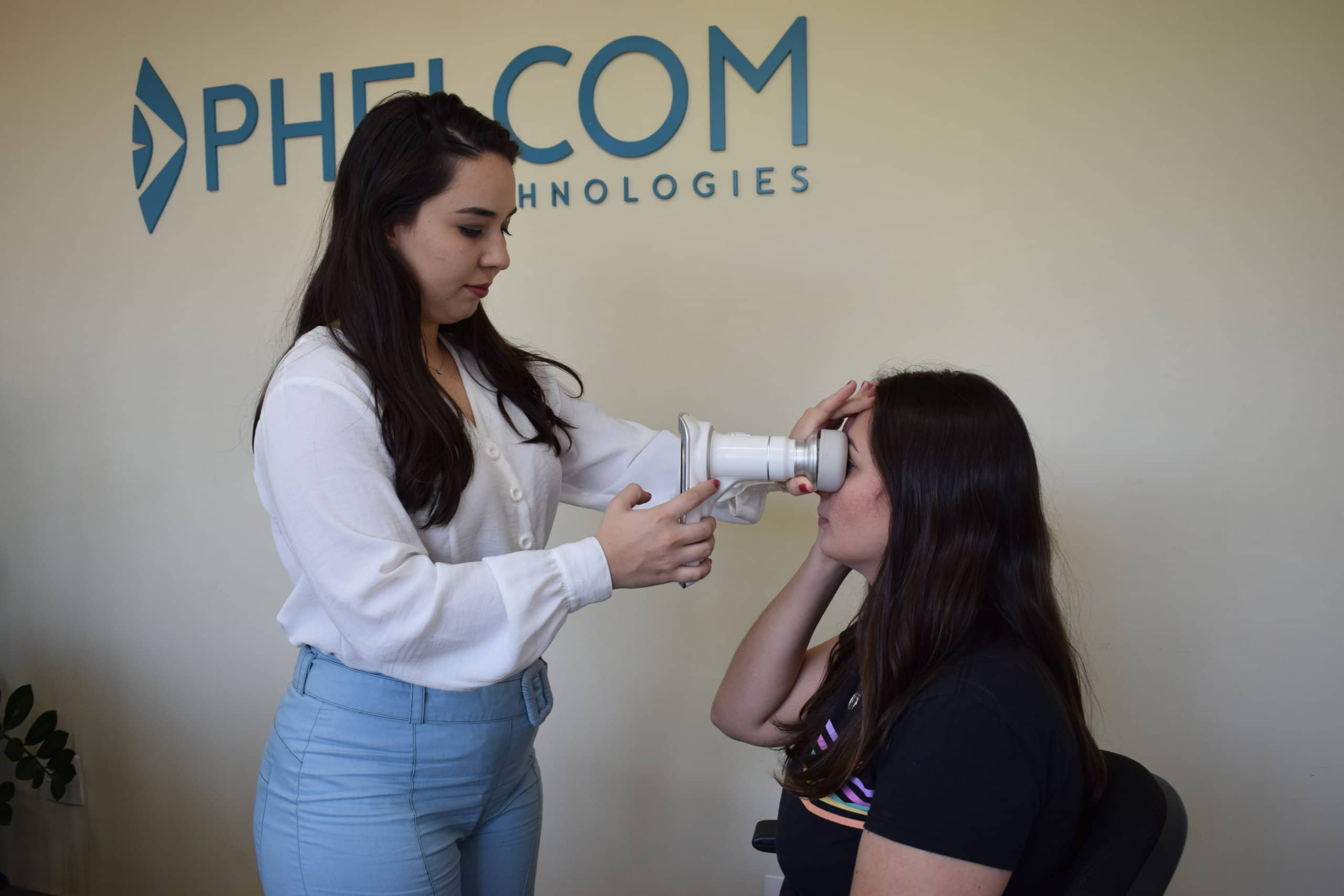

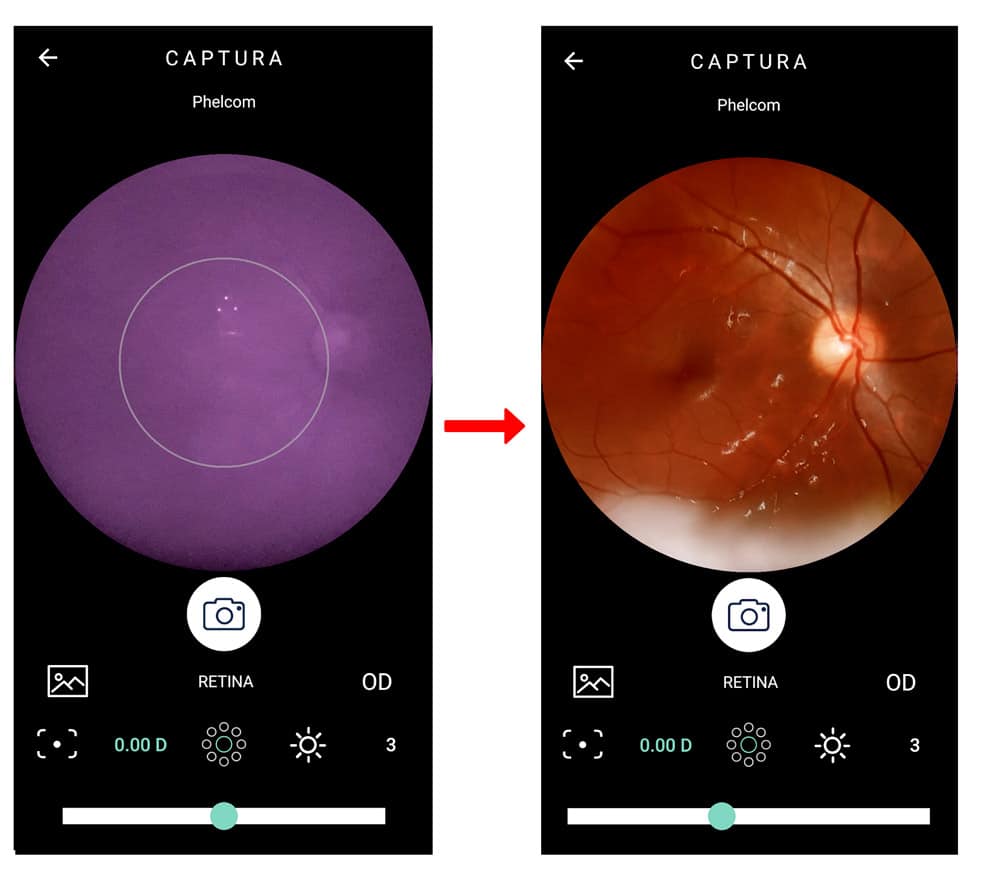

If you don’t position the device correctly, some external light can be captured. This can be identified by the white glare on the edges of the image, as shown below. To correct this mistake, ensure you are holding the device perpendicular to the patient’s face and try to stay at the same level as them, either both sitting down or standing up.

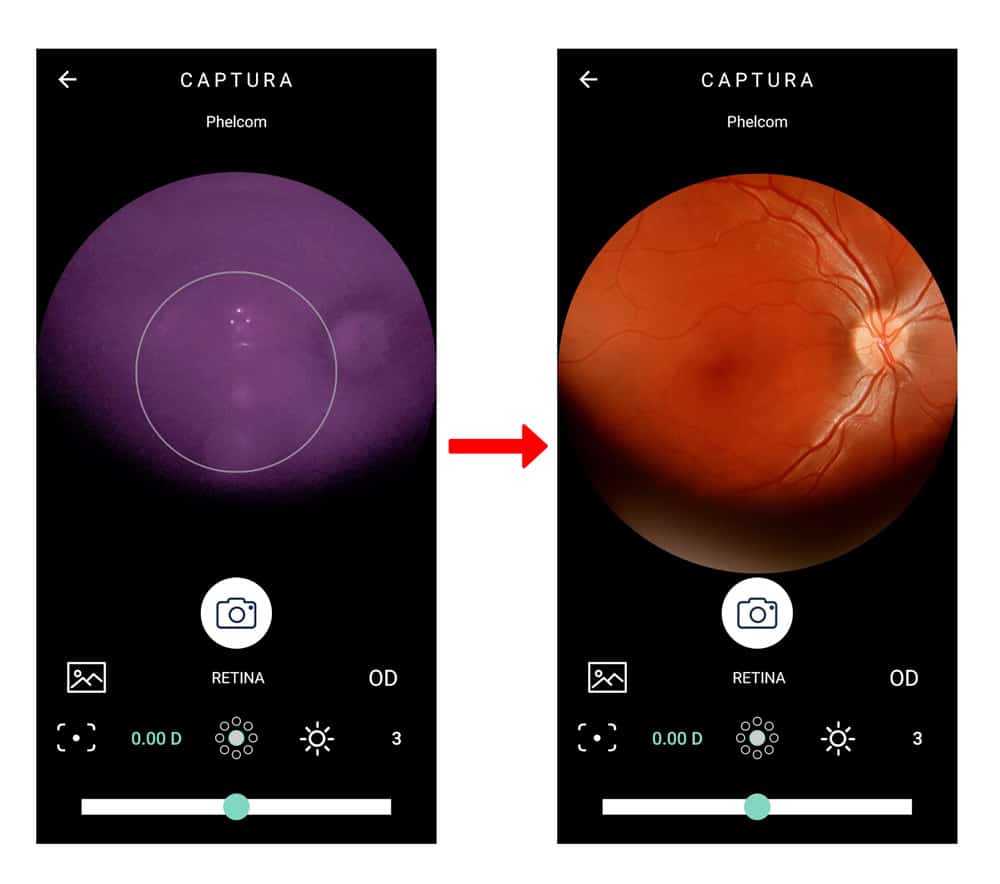

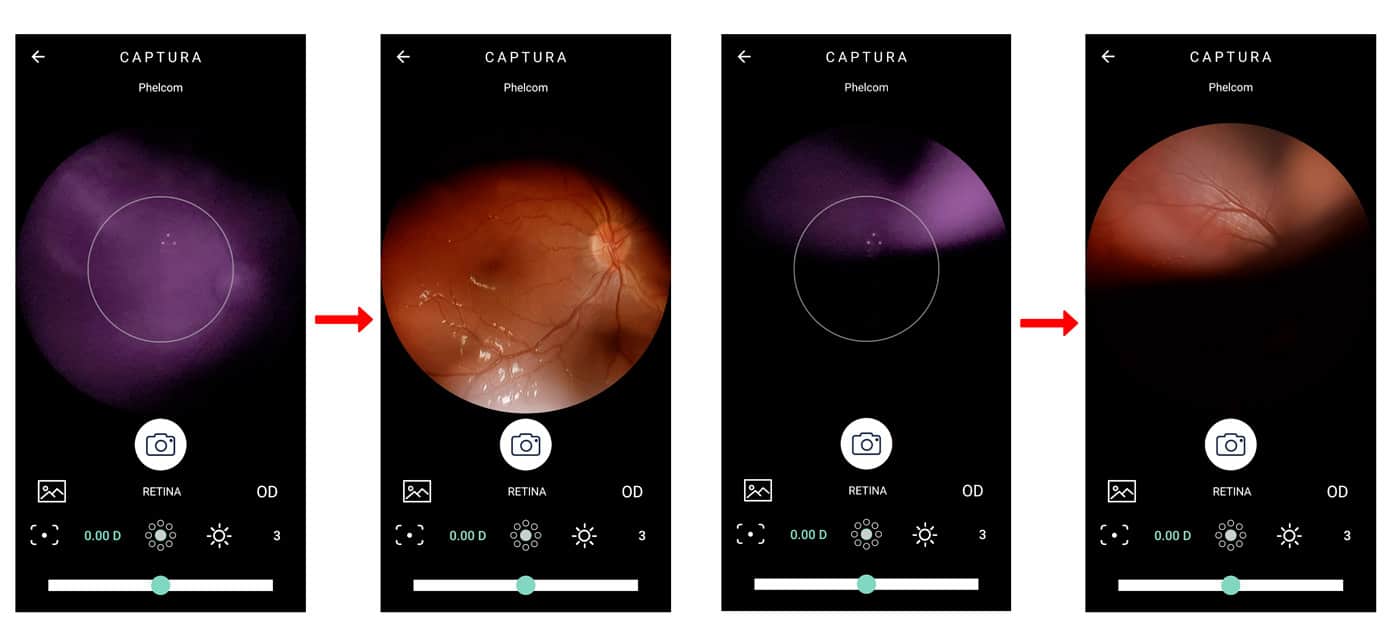

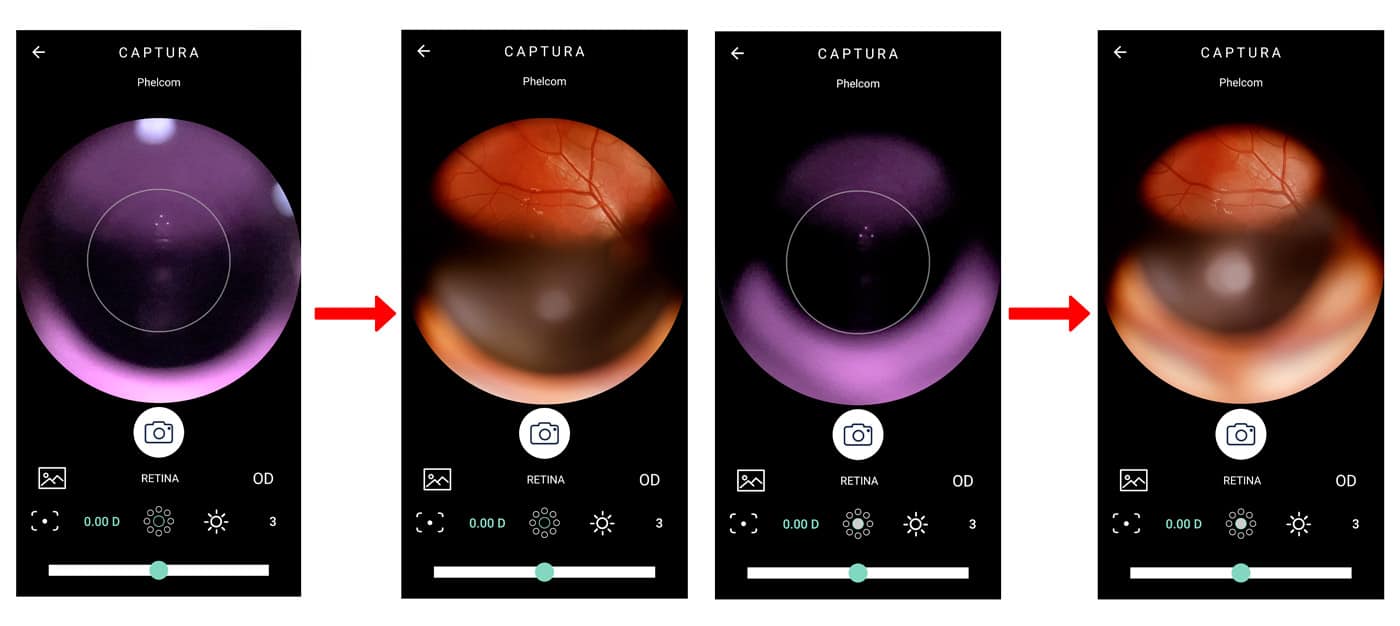

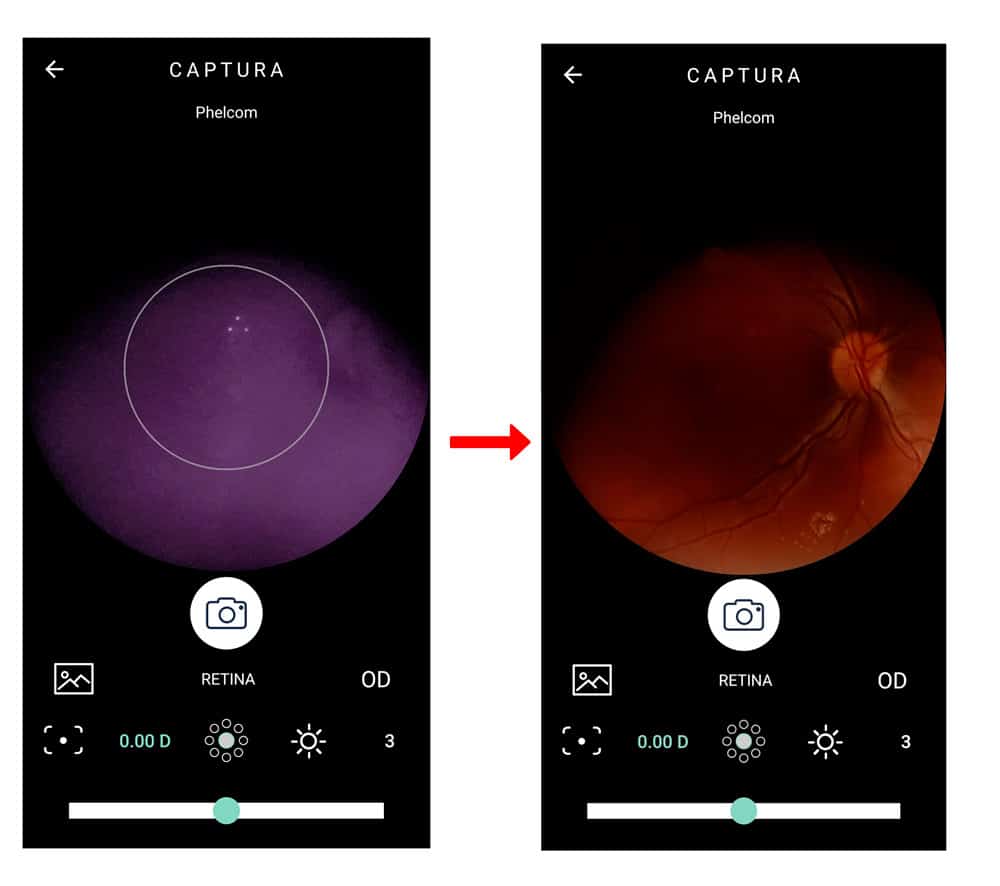

If your pictures contain black spots on the edges, bring the device closer to the patient’s face and before taking the picture ensure that the retina is evenly illuminated. Everything that appears dark before the photo will continue being dark in the photo.

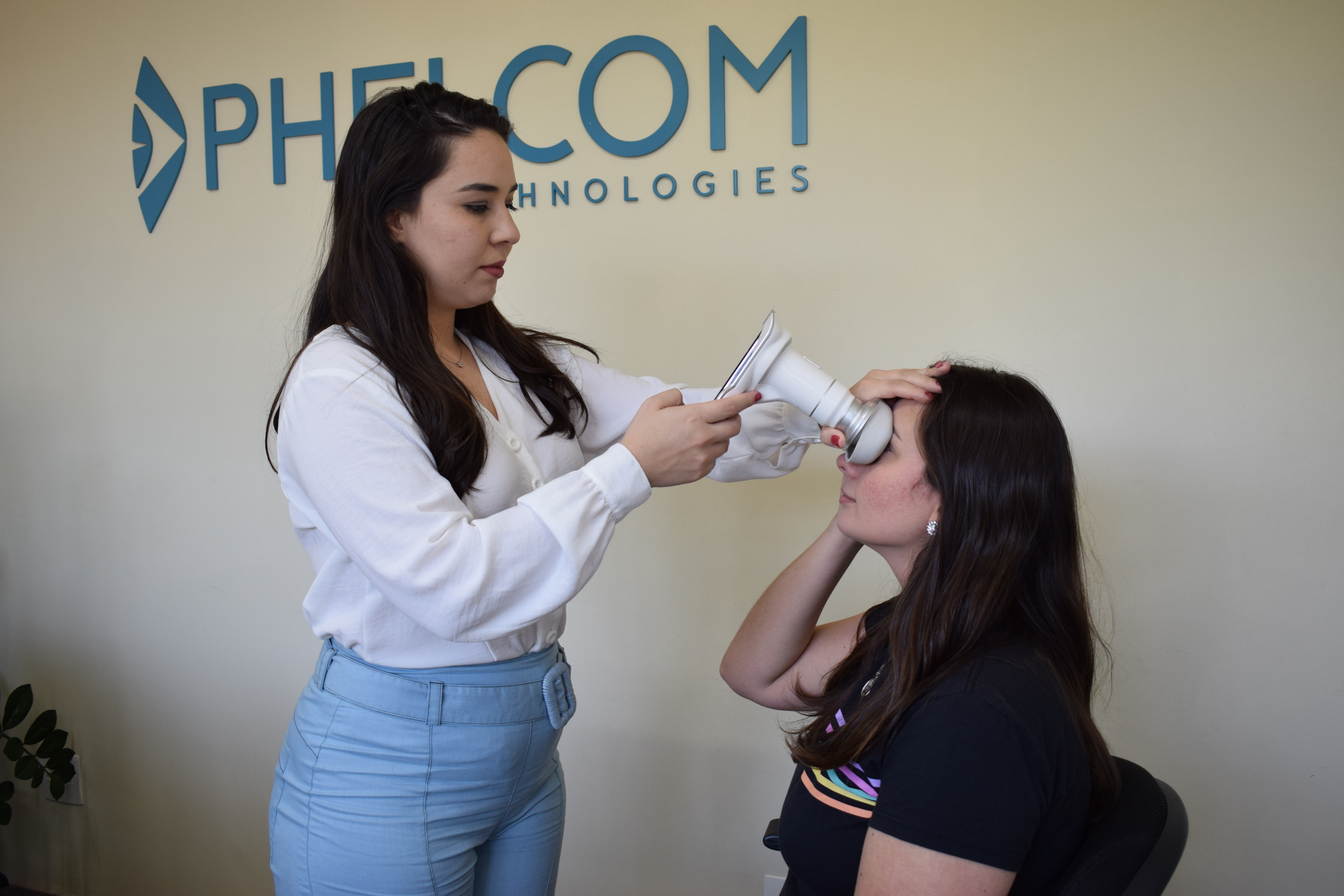

Dsc 0413 Scaled.jpg — **Incorrect Camera Angle**

Faq How To Avoid The Most Common Capture Mistakes 23

Faq How To Avoid The Most Common Capture Mistakes 24

Faq How To Avoid The Most Common Capture Mistakes 25

Faq How To Avoid The Most Common Capture Mistakes 26

Focus

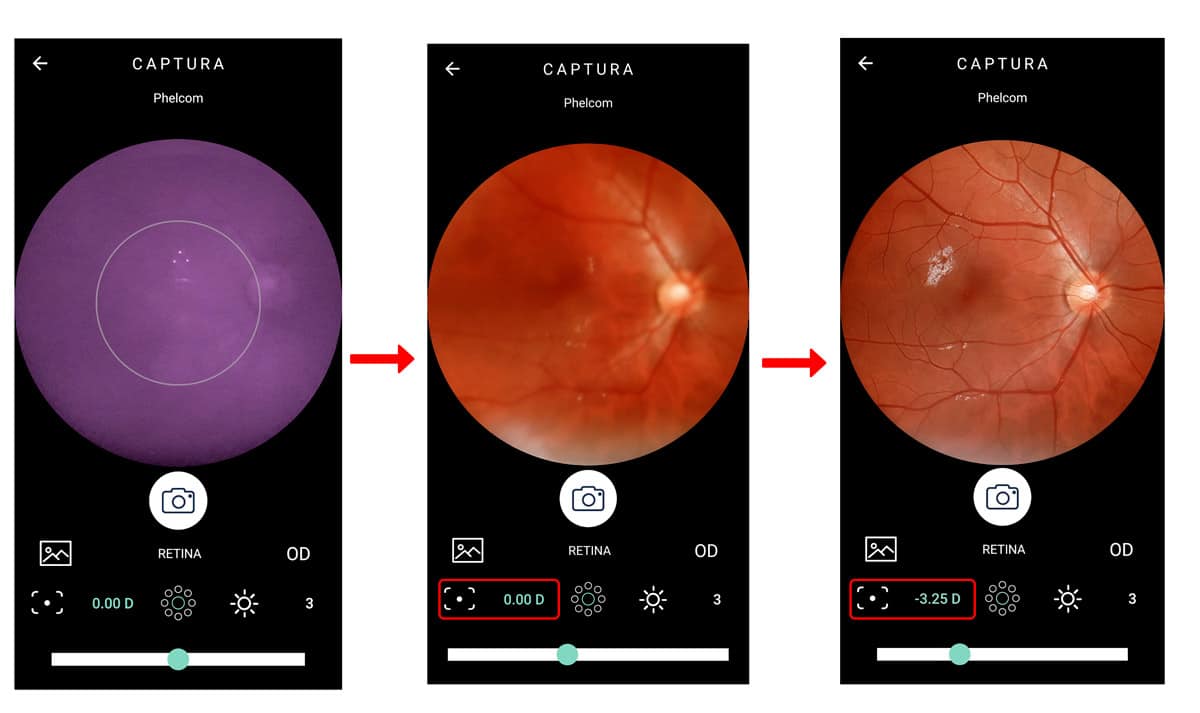

If the photo is blurry, like in the example on the left you need to adjust the patient’s diopter in the settings.

Faq How To Avoid The Most Common Capture Mistakes 04

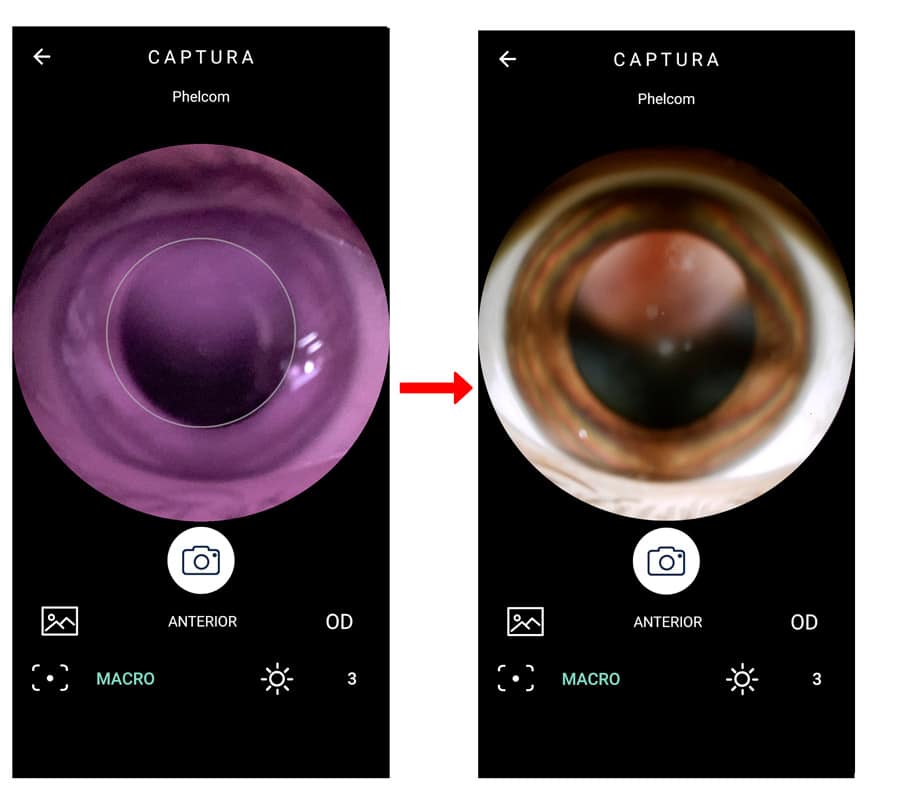

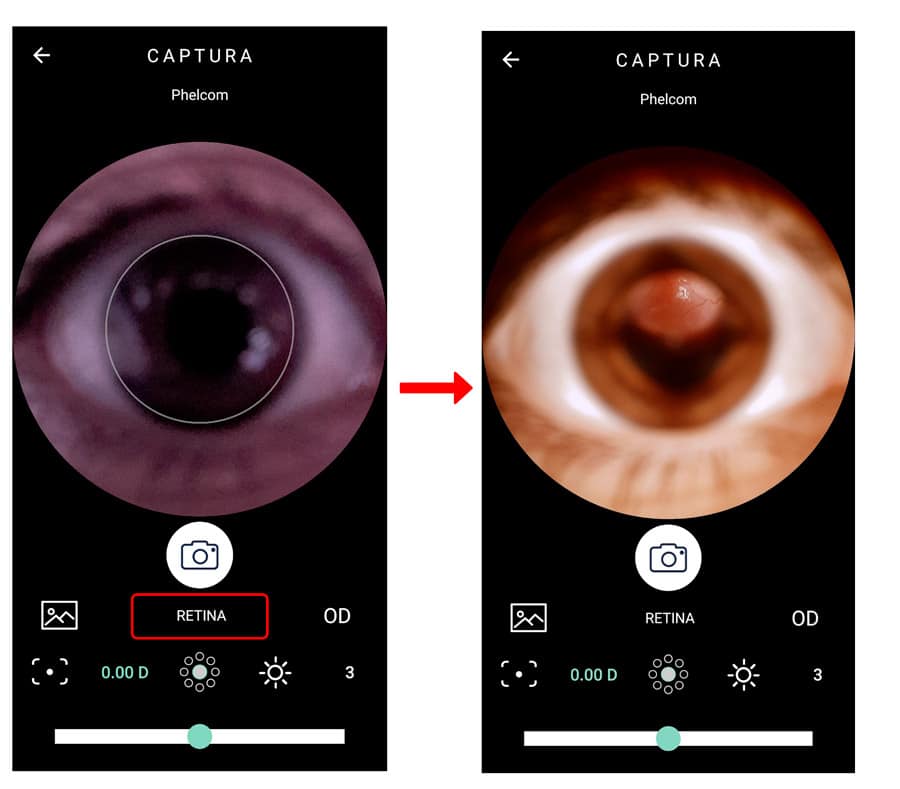

When taking pictures you should use the appropriate mode of capture (anterior for anterior pictures and retina for posterior segment pictures), otherwise the quality of the pictures will be affected.
